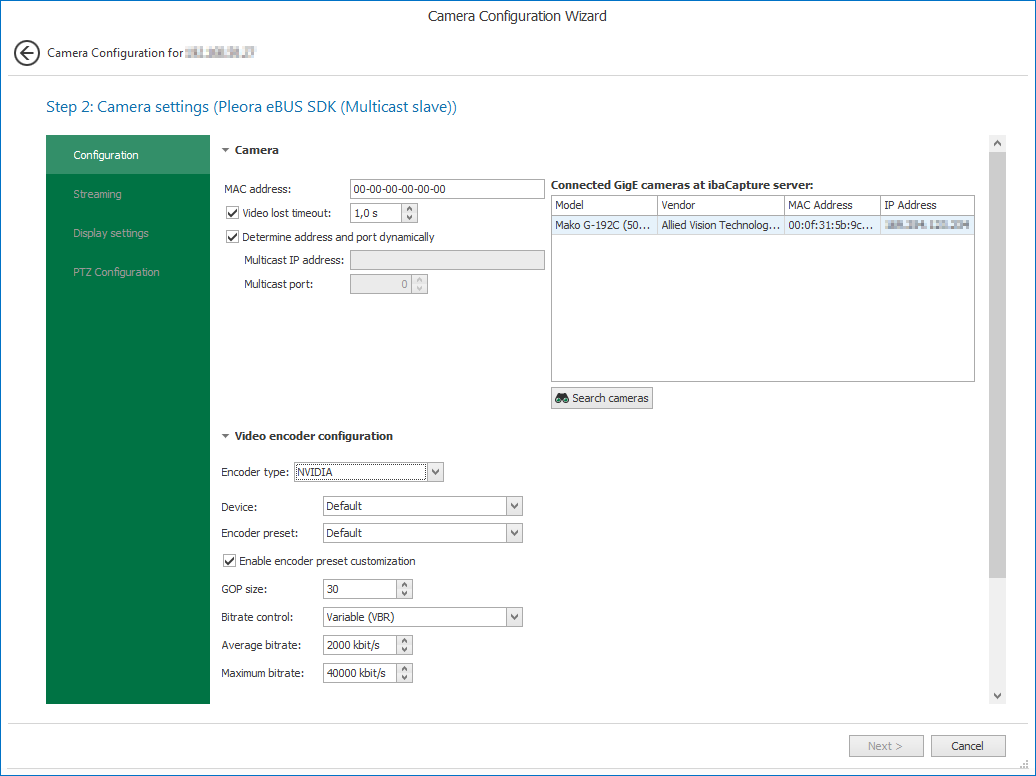

In the Camera settings (Pleora eBUS SDK (Multicast slave)) dialog, you can make settings for the camera and video encoder configuration for the Pleora eBUS SDK Multicast Slave camera type.

MAC address of the camera

Each camera is uniquely identified by a MAC address. Enter the MAC address of the camera or select it from the list of connected cameras.

Video lost timeout

Time span after which "No video signal" error will be shown if no frames are received from the camera.

Determine address and port dynamically

Enable this option to obtain the address and the port of the GigE device that provides the multicast stream automatically.

If it is not possible to receive the multicast address and port dynamically, enter the respective data manually.

Video encoder configuration

Description see chapter Video encoder configuration.

Streaming settings

For detailed information about streaming ports please refer to the ibaCapture manual.
