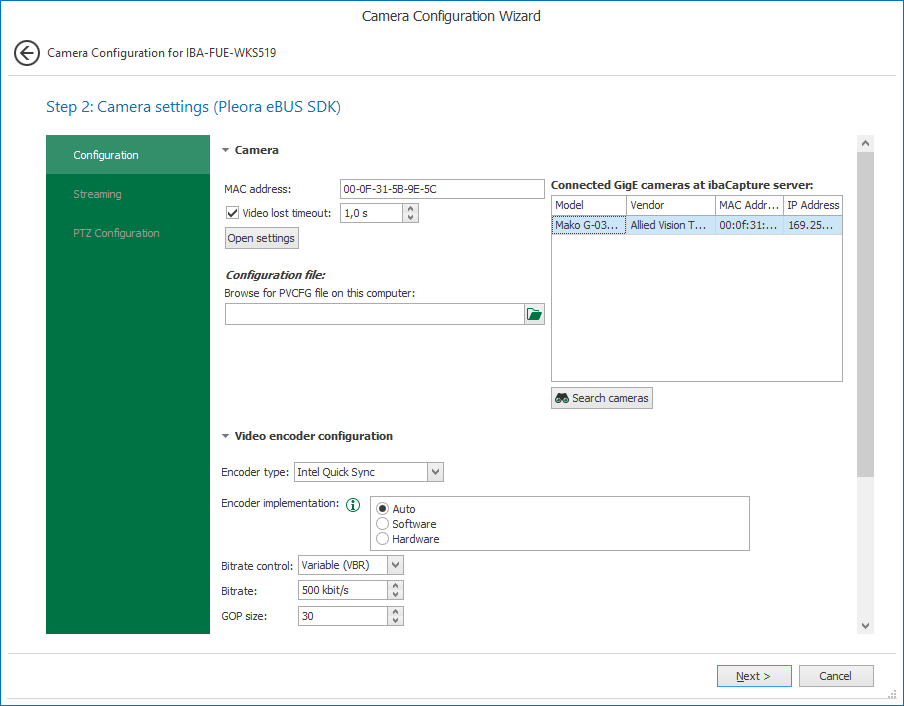

In the Camera settings (Pleora eBUS SDK) dialog, you can make settings for the camera and video encoder configuration.

MAC address of the camera

Each camera is uniquely identified by a MAC address. Enter the MAC address of the camera or select it from the list of connected cameras.

Configuration file

Here you can select a PVCFG configuration file. Configuration files in PVCFG format can be created using the eBUS Player application. This is part of the eBUS installation.

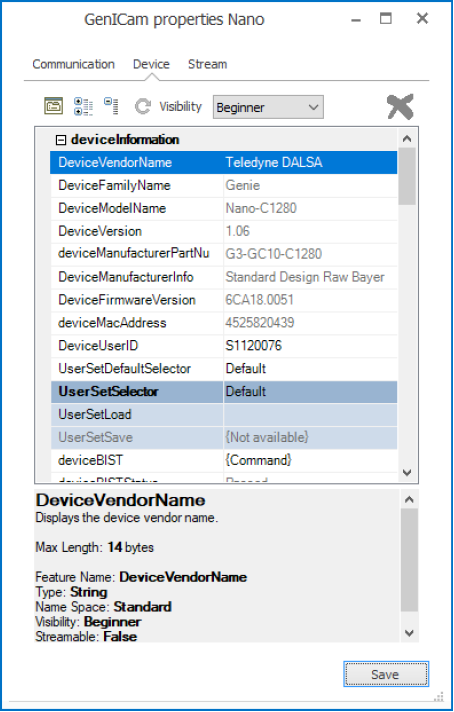

You can also create PVCFG configuration files in ibaCapture. Click <Open settings> to open a pop-up dialog with all camera settings.

After setting all properties for this specific camera configuration, click <Save> to store the camera settings in a PVCFG file.

Video encoder configuration

Description see chapter Video encoder configuration

Streaming settings

For detailed information about streaming ports please refer to the ibaCapture manual.
