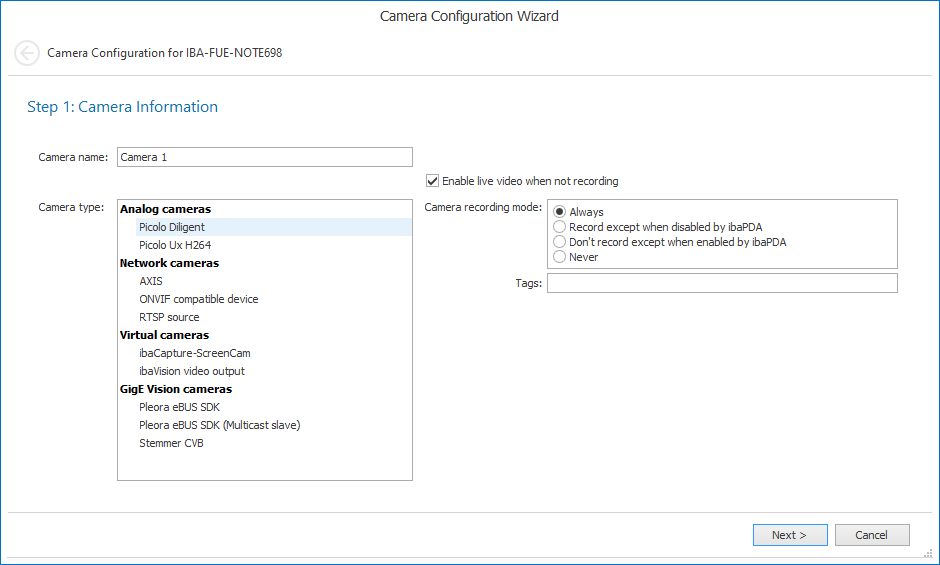

In order to add a new camera click Add new camera in the ribbon. A configuration wizard guides you through the configuration process.

1. Depending on the used SDK select the corresponding GigE camera type and select the camera recording mode. On a single ibaCapture Server, you can only use GigE cameras with the same SDK. It is not possible to configure additional GigE cameras with a different SDK.

   You can also enable live video when ibaCapture is not recording.

2. Configure the camera settings.

   • For Pleora eBUS SDK cameras see chapter Pleora eBUS SDK camera configuration

   • For Pleora eBUS SDK Multicast slave cameras see chapter Pleora eBUS SDK Multicast slave camera configuration

3. Set the streaming ports. For detailed information about streaming ports please refer to the ibaCapture manual.

4. Configure the storage settings. For detailed information about storage settings please refer to the ibaCapture manual.
