ibaCapture Player is the software module enabling several iba software applications to visualize camera images captured by ibaCapture Server.

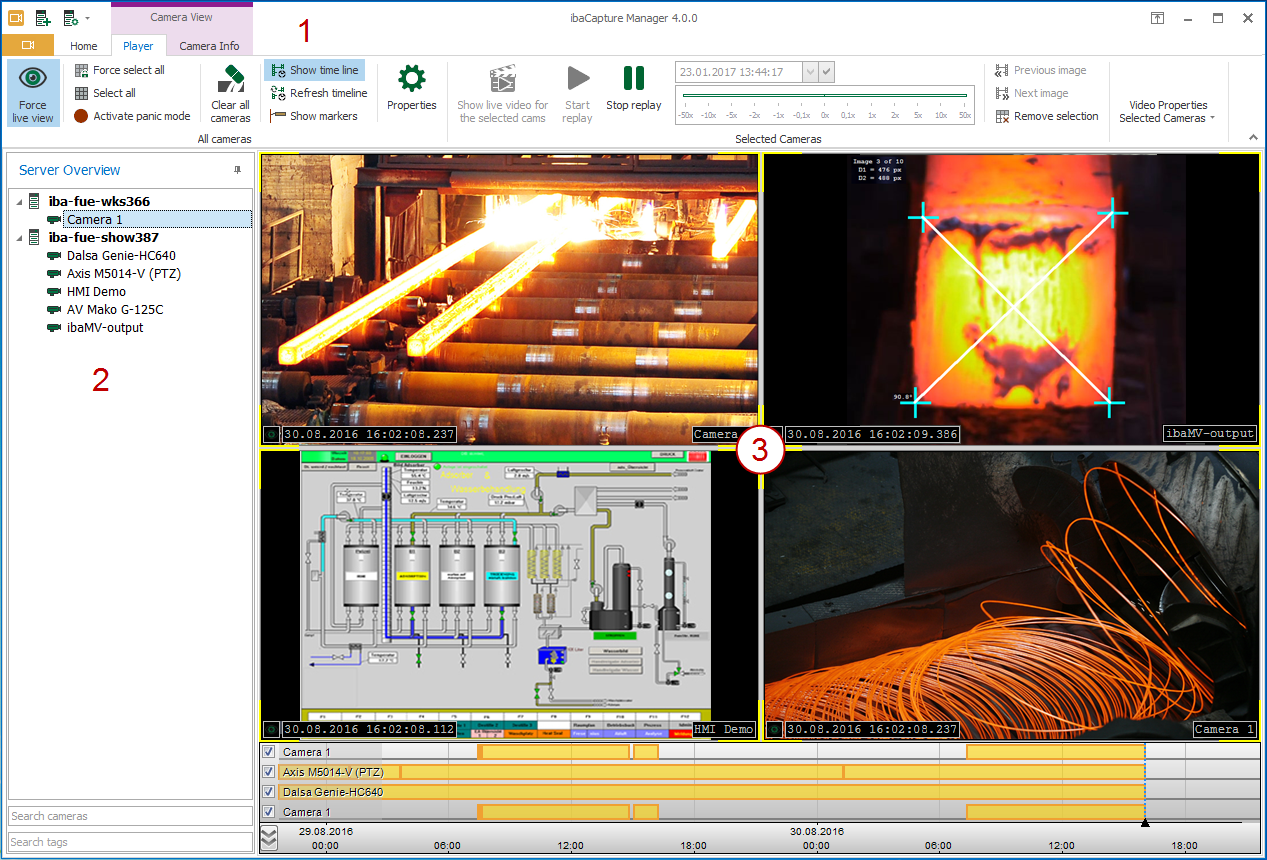

In ibaCapture Manager, ibaCapture player provides the following user interface:
|
1 |
Ribbon-based controls |
|
2 |
Server overview with configured cameras |
|
3 |
Camera views |
It is possible to establish connections to multiple ibaCapture Servers in the network and add their cameras to the camera view. This way, you can arrange views with cameras of different video servers, also see chapter Adding servers.
Start ibaCapture Manager by double clicking on the icon on the desktop
or via the Windows "Start" menu.

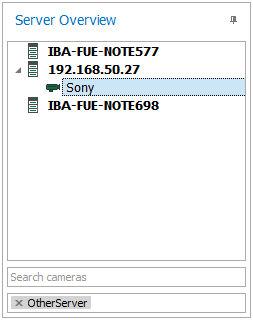

The connected servers with the configured cameras are displayed in the server overview. In the lower area, you can filter by camera: by camera name and by tags that have been assigned to the cameras. See also chapter General information.
With the filter function, only the cameras with the corresponding filter options are displayed.
Example:
