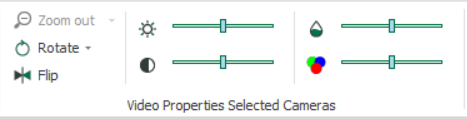

Each camera offers operating functions to control zoom, contrast, brightness, saturation and hue and to flip the image. All functions can be controlled by command icons in the ribbon.
 |
Zoom out |
 |
A click on the small triangle offers the option Zoom out all. All zoom steps are undone at once by selecting this option. |
 |
A click on the small triangle opens a selection of options to rotate the image: 90°, 180° and 270° counterclockwise |
 |
Flip image horizontally |
 |
Slider for adjusting image brightness Brightness will be reset to the default value by clicking the icon. |
 |
Slider for adjusting image contrast Contrast will be reset to the default value by clicking the icon. |
 |
Slider for adjusting the saturation Saturation will be reset to the default value by clicking the icon |
 |
Slider for adjusting the hue Hue will be reset to the default value by clicking the icon. |
Please note that brightness, contrast, saturation and hue are only changed in selected video players. There is no effect on stored video and on players in other applications, e.g. ibaPDA or ibaAnalyzer.
There are also alternative ways to zoom in and out and to change brightness, contrast saturation and hue:
Zooming

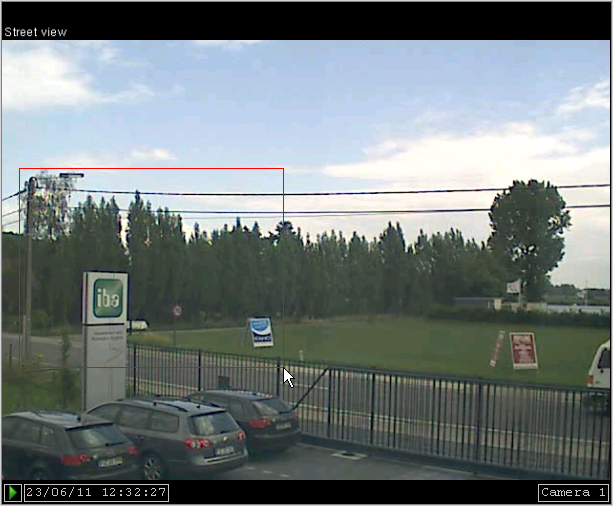

In oder to zoom in position the mouse pointer in the top left corner of the area that you wish to magnify. Draw a red rectangle by keeping the mouse button pressed and dragging the mouse to the lower right corner. Release the mouse button.
Zooming out is performed by pressing Zoom out
in the ribbon.

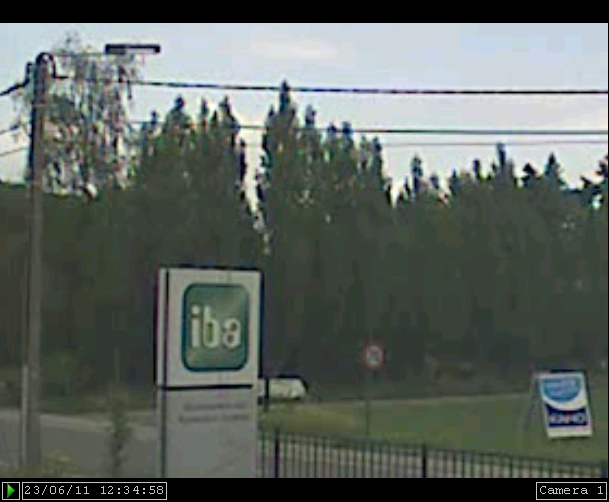

As third way, it is possible to zoom in/out by scrolling the mouse wheel. Position the mouse pointer over the image and scroll the mouse wheel. When zoomed in, you can move the section by moving the mouse keeping the <ALT> and left mouse button pressed.
To preserve the original aspect ratio of the video during display, the image is centered between black bars. When zooming in, the black areas are reduced accordingly or are no longer visible, while still maintaining the aspect ratio.
Change properties in the camera window
Contrast, brightness, saturation and hue can also be changed using the sliders in the camera window. To do so, move the mouse pointer in the upper right corner of the camera window where sliders appear.
Brightness, contrast, saturation and hue will be reset to the default value by clicking the respective icon above the sliders.

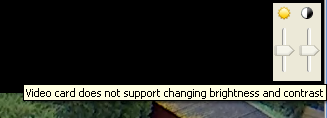

If the graphics adapter of your computer does not support changing these settings you’ll get an error message in a tooltip with the mouse hovering over the control.
