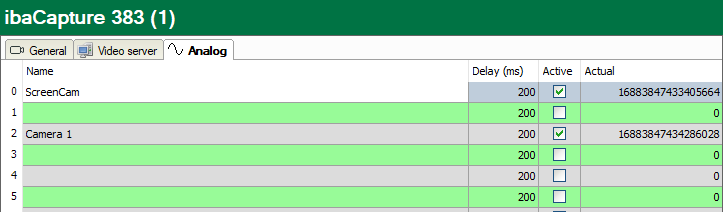

The Analog tab displays all the connected cameras in a signal table.

Name

Clicking in the column Name enables you to change the name of the camera in the respective row.

If no camera names have been assigned yet in ibaPDA, the camera names from ibaCapture Server are loaded as default as soon as ibaPDA connects to ibaCapture Server.

Delay

The delay time given in ms is the time needed for the transfer of the video data from the camera via MPEG/H.264/H.265 compression to time stamp and storage on the video server. It can be modified according to real circumstances if required.

Usually, the pre-set values of the delay can be retained.

Active

For the synchronization data of a camera to be stored in the data file and thus connecting the video to the measuring data recording, the Active column must be ticked off. Respectively, ibaAnalyzer will show the camera in its signal tree later when the DAT file is opened for analysis. If you double-click the camera, then in ibaAnalyzer it will retrieve the video from the ring buffer of the ibaCapture Server using the stored sync information.

Actual value

The actual value is the timestamp/sync value for each camera (64 bit value).
