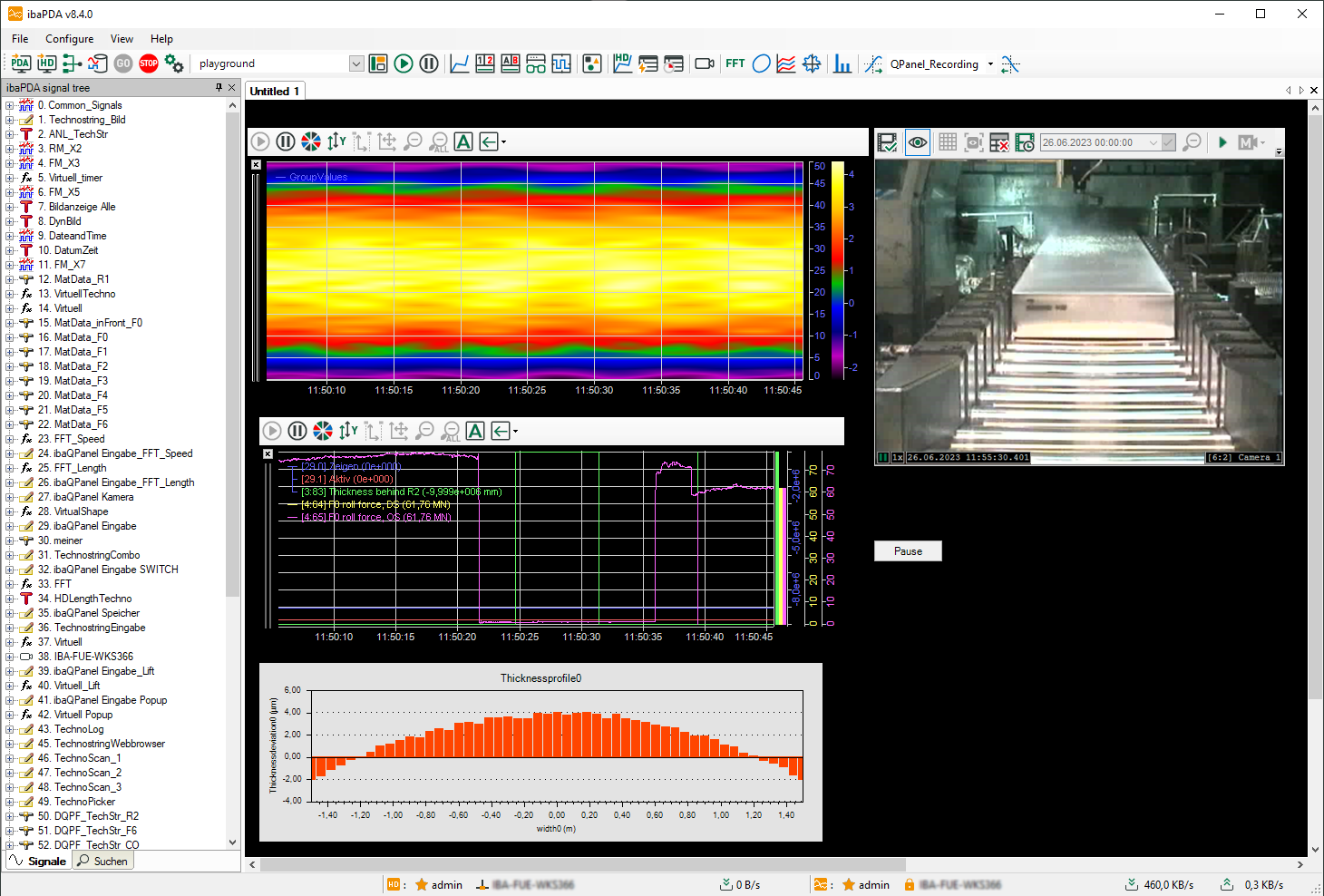

With ibaCapture it is possible to display a live image view of the video recording in the signal display area of ibaQPanel.

First, you have to create a panel to be able to use the camera view in ibaQPanel. You can also use an existing panel. Information about how to use ibaQPanel can be found in the corresponding ibaQPanel manual.

Switch the panel to the design mode. Select the "Camera view" object from the "Tools" window, drag the object and drop it into the panel. Then exit design mode.

Now, you can add one or more cameras from the signal tree to the camera view object by drag and drop.

The component being used for display and application is ibaCapture Player.

For further information regarding the toolbar, see previous chapter Video display in ibaPDA.

The scenario player in ibaQPanel is a specific feature for controlling the camera layout. The scenario player provides a trigger mechanism to change camera layouts controlled by ibaPDA signals.

Thus the camera view can be automatically switched by special events or process signals. This allows the cameras in the relevant sector of a plant to be activated in the event of an emergency stop, giving the operator immediate insight into the situation. For detailed information, see the ibaQPanel manual.
