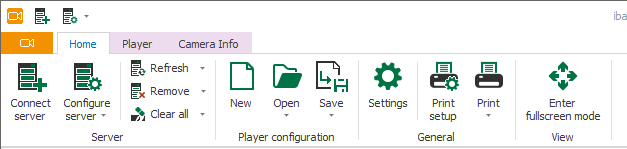

In the Home menu, you can set up the camera view, in particular

  • establish the connection to one or more ibaCapture Servers

  • save player configurations and reload saved player configurations

  • make default settings for the view mode.

The Home menu provides the following commands:

Connect server

opens the dialog to add a server or to search the network for ibaCapture Servers

Configure server

switches to server configuration mode

Refresh

refreshes the server overview

Remove

removes the selected server

Clear all

removes all connected servers

New

creates a new camera view layout. Note: the current server list will be deleted

Load

loads a camera view configuration file (*.xml, *.ccl). You can select the last 10 entries from the drop-down menu.

(the current server list will not be changed)

Save

saves a camera view layout as camera view configuration file


Settings

opens the Settings dialog. Here you can select a layout that will be loaded with the next start of ibaCapture Manager.


Print setup

opens the Print Setup dialog. Here you select the printer and you can define the orientation, scaling and margins in addition to the standard printer settings. You can check the settings and their effects in the preview.


Print

Use the Print command to open a drop-down list with all open cameras. Select Print all to print the currently visible camera layout with all displayed cameras. To print the image of a camera, select the camera name from the list.

Enter fullscreen mode

switches to fullscreen mode

Further functions for help and language switching can be found in the main menu, see also Main menu.
