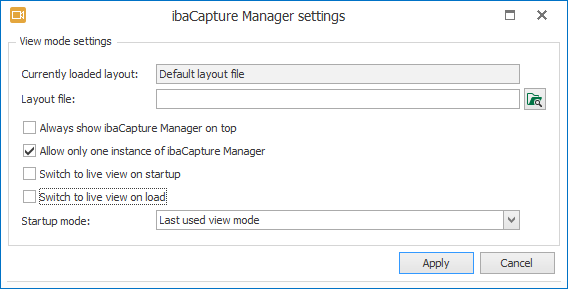

Settings for the view mode can be made in the ibaCapture Manager Settings dialog. A click on Settings opens the dialog:

The current layout is displayed in the field Currently loaded layout. This field is for display only.

In the Layout file field, you can specify a saved layout that will be loaded the next time ibaCapture Manager is started. You can specify the file name with the full path or use the <Browse> button to select the file.

You can enable additional options:

• Always show ibaCapture Manager on top: ibaCapture Manager is always displayed in the foreground

• Allow only one instance of the ibaCapture Manager: ibaCapture Manager can only be opened once.

• Switch to live view on startup: All cameras are displayed in live view when ibaCapture Manager is started.

• Switch to live view on load: When a layout is opened, all cameras are displayed in live view.

Startup mode

Here you can select the view mode when ibaCapture Manager is started:

• Last used view mode

• Normal

• Enlarged

• Full screen

• Full screens on all the screens
