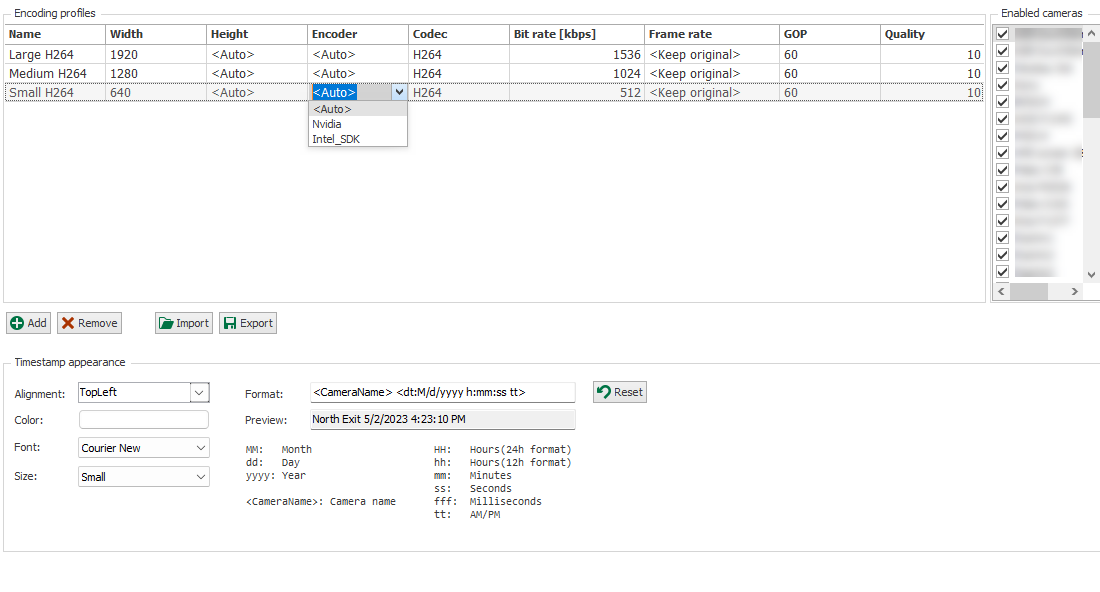

Several encoding profiles with different picture sizes are already preset (Large H264, Medium H264, Small H264):

You can assign a name and make the following settings for each encoding profile:

• Width/height: numerical input in pixels, <Auto> or <Keep original>

• Encoder: <Auto>, NVIDIA or Intel SDK

• Codec: H264 or HEVC

• Bit rate: numerical input

• Frame rate: numerical input or <Keep original>

• GOP: numerical input or <Keep original>

• Quality:  Numerical input (1 - 10)

  The Quality setting can be adjusted to prioritize performance over image quality. Lower values favor encoding speed over image quality. If there are no other constraints, it is recommended to set this value to 10 and adjust image quality with the bit rate setting.

If you select <Auto>, ibaCapture automatically selects an appropriate value. If you select <Keep original>, the settings are kept unchanged from the source video.

The Enabled cameras list allows to enable or disable the currently selected profile for specific cameras. To do this, select a profile and select or deselect the cameras. Newly added cameras are enabled for all profiles by default.
