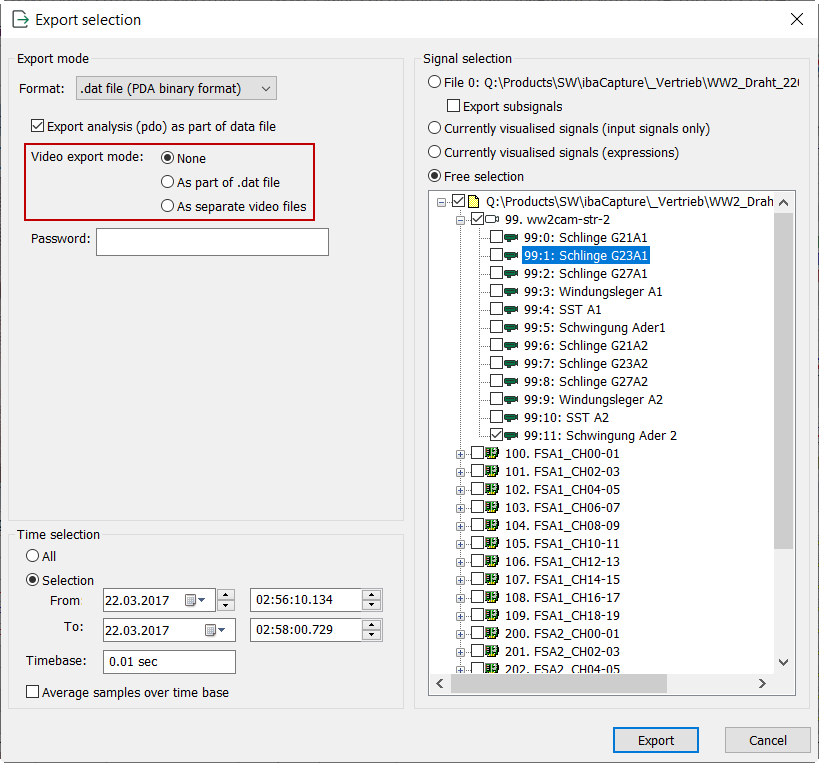

In the export dialog, also the video recordings can be exported with a binary data export. You access the export dialog via the “File - Export...” menu .

There are 3 export modes you can select from:

• None: Videos will not be exported

• As part of the data file: The data file (*.dat) contains the video sequences

• As separate video file: In addition to the DAT file, an MP4 file is generated.

The "as part of data file" export function is conceived for a case in which data files including their synchronized video files are to be played irrespective of the video server. A network connection to the video server is thus not necessary. A new DAT file is created which contains the selected measuring signals and video recordings. Continuous and triggered video recordings can be exported in one data file.

All further and basic settings in the export dialog are described extensively in the manual "ibaAnalyzer", chapter “Exporting data”.
