Once you have configured ibaAnalyzer with all the required measurement signals and video recordings, you can analyze the measurement data and view the measured values in relation to the video sequences.

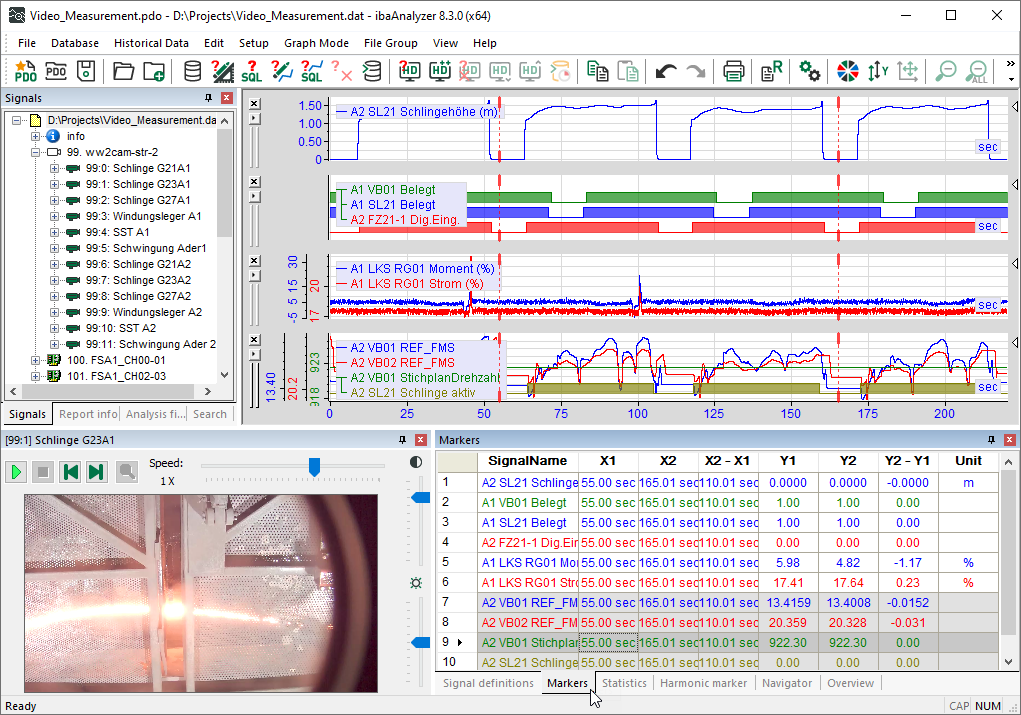

Select the Markers tab in the signal table window to display the markers in the graphs.

Place the marker at any point in the graph. The marker shows the current measured values recorded in the respective video sequences. The video sequences are linked to the measured values by a common time base.

When you move the X1 marker, the video window displays the corresponding video sequences. Text channels that are visible in the camera view are also updated. The camera icon on the marker indicates the link between the measured values and the open video.

When you play the video sequence, the marker also runs through the measured values. You can use the <Pause> and <Stop> buttons to interrupt the film sequence, and thus also the sequence of measured values.
