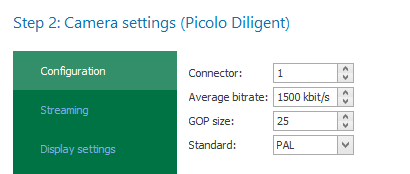

The following settings are required for analog cameras (Picolo Diligent):

Basically, the camera settings for this older type of frame grabber cards correspond to those in the chapter above.

The differences are:

• The Connector status display serves for information purposes only. The connection is established automatically.

• You may change the average bit rate for the recording. The default value of 1500 kbit/s provides for a fair recording quality.
