ibaW-750 is connected to the ibaPDA computer via an Ethernet network. It does not matter which of the two Ethernet interfaces is used. The device works with the ibaNet-E protocol for the transmission of configuration and measurement data.

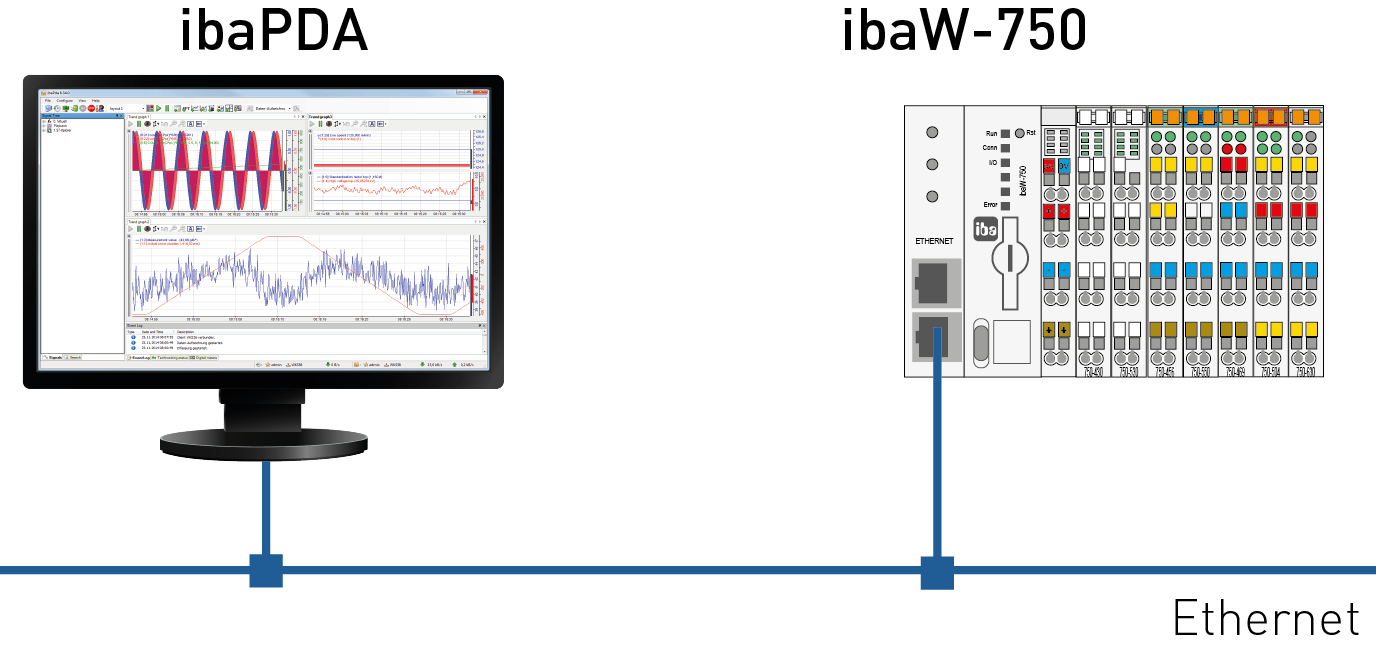

The network topology is not important here. The device can either be connected directly (P2P) to the ibaPDA computer, as shown in the following illustration, or via a switch or router.

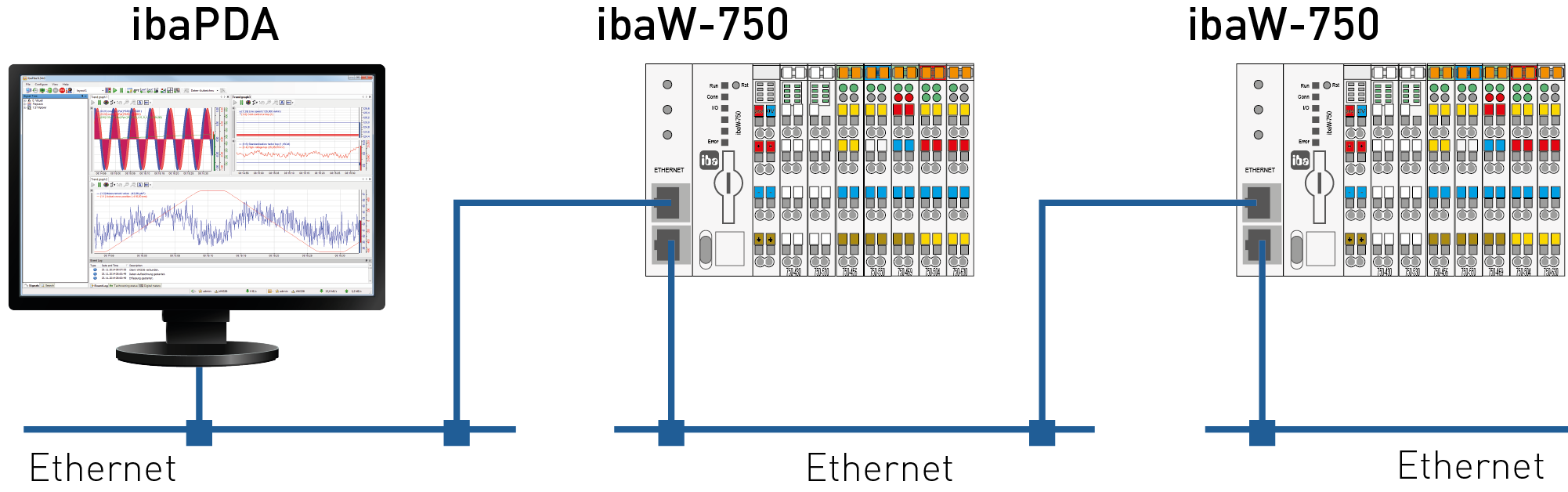

If several ibaW-750 devices are connected, the switch integrated in the device can also be used.

ibaPDA automatically recognizes the ibaW-750 device and the connected terminals if ibaW-750 and the ibaPDA computer are in the same network (LAN).

The sampling rate can be freely adjusted from 1 Hz to 1 kHz. The maximum data transfer depends on the adjusted sampling rate. The following rule applies: The higher the sampling rate, the smaller the data volume.

The update time of the signals is also limited by the update rate of the K-bus and the connected terminals with their specific properties.
