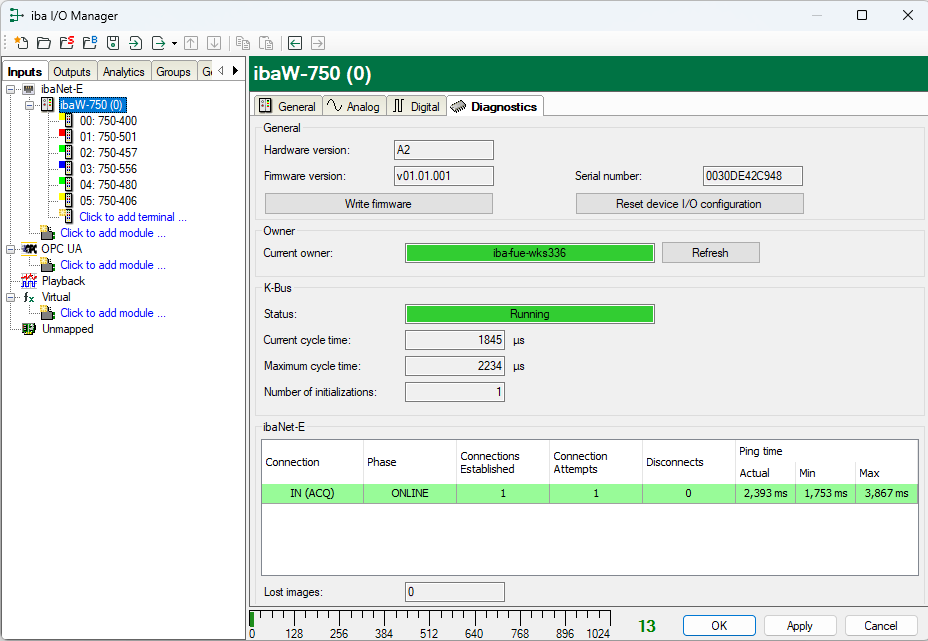

The following information is displayed on the Diagnostics tab.
General
The General section displays the version of hardware and firmware and the serial number of the device.
<Write firmware>
Using the button <Write firmware>, it is possible to install firmware updates. Select
the update file w750_v[xx.yy.zzz].iba in the browser and start the update with <OK>.
Note |
|
|---|---|
 |
This process may take several minutes and must not be interrupted. After an update the device will be automatically rebooted. |
<Reset device I/O configuration>

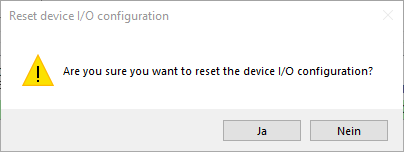

The entire module configuration is reset with the <Reset device I/O configuration> button after you have confirmed the following query with <Yes>.

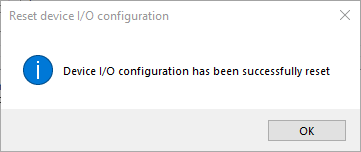

The following message is shown:
Note |
|
|---|---|
|
The device address is not reset. |
Owner
If a module configuration has already been carried out on the ibaW-750 device, the last owner of this module configuration is displayed here.
After delivery or resetting to factory settings, this field is empty.
The owner corresponds to the computer name on which ibaPDA is installed and from which this ibaW-750 device was last configured.
The <Refresh> button can be used to call up the current owner of the module configuration from the device at any time.
Meaning of the colors:
|
Green |
The ibaPDA system that is currently accessing it is the owner |
|
Orange |
Another ibaPDA system is the owner, but has not locked the module configuration |
|
Red |
Another ibaPDA system is the owner and has locked the module configuration |
K-bus
Status
-
Running (K-bus acquisition is running)
-
I/O error (K-bus interrupted)
-
Configuration error (The device configuration is different from the connected terminals)
Current cycle time
Current sampling time
Maximum cycle time
Maximum sampling time
Number of initializations
Number of K-bus initializations
ibaNet-E
Connection
Direction and type of the ibaNet-E connection
Phase:
ibaNet-E phase of the connection
Connections established
Number of connections established since the start of acquisition
Connection attempts
Number of connection attempts since the start of acquisition
Disconnects
Number of connection interruptions since the start of acquisition
Ping time
Separately measured response time for evaluating the connection quality
Lost images
Number of lost I/O images that were created for the sampling clock
Depending on the ibaNet-E phase of the connection it can be highlighted with different colors:
|

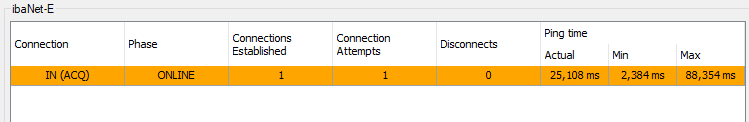

Orange |
The connection is "online", but the Ethernet connection quality is not optimal  |
|

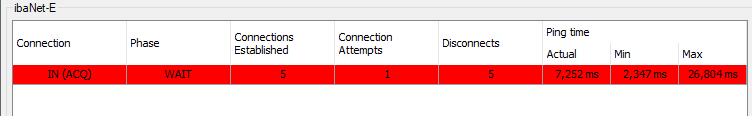

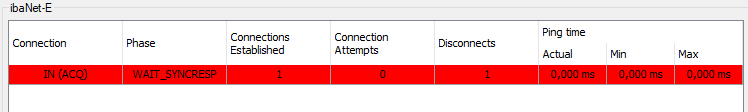

Red |
During the ibaNet-E phases "WAIT" (phase during connection establishment) and "WAIT_SYNCRESP" (phase during connection interruption)   |
