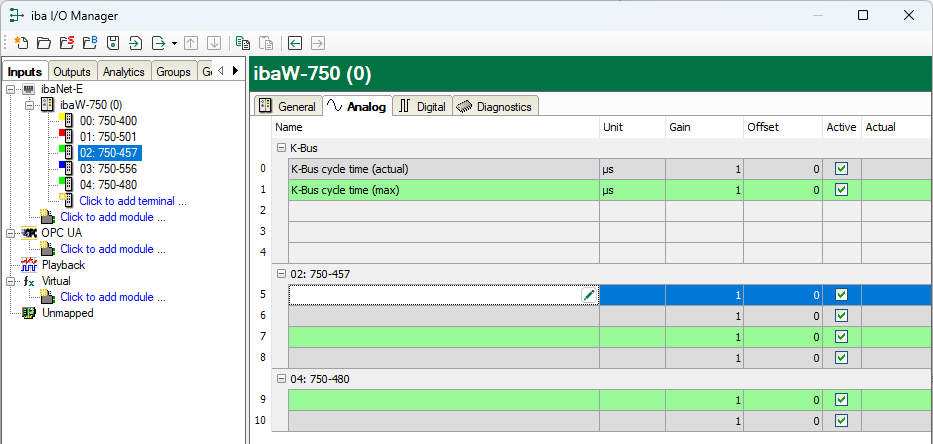

The analog signal table is automatically adjusted for each terminal type. The terminals are displayed in the order in which they are added.

The signals "K-bus cycle time (actual)" and "K-bus cycle time (max.)" are available as standard and can be enabled/disabled.

Name

The WAGO terminal number is automatically applied. One row per channel is displayed. You can enter a signal name and additionally two comments when clicking on the symbol in the Name field.

Unit

Here you can enter the physical unit of the analog value.

Gain/offset

Gradient (gain) and y-intercept (offset) of a linear equation. This allows you to convert a standardized, unit-free transmitted value into a physical value.

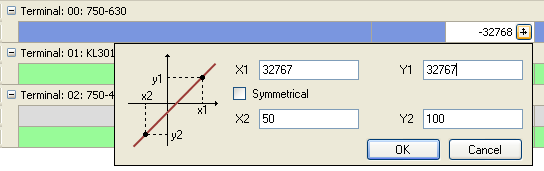

For making the calculation of Gain/Offset easier, an auxiliary dialog appears when clicking on the co-ordinate cross icon in the Gain or Offset field. In this dialog, you only enter two points in the line equation. Gain and Offset are then calculated automatically.

Active

Enabling/disabling the signal

Actual

The actual measured value is displayed here.

You can display or hide further columns using the context menu (right-click in the header line).
