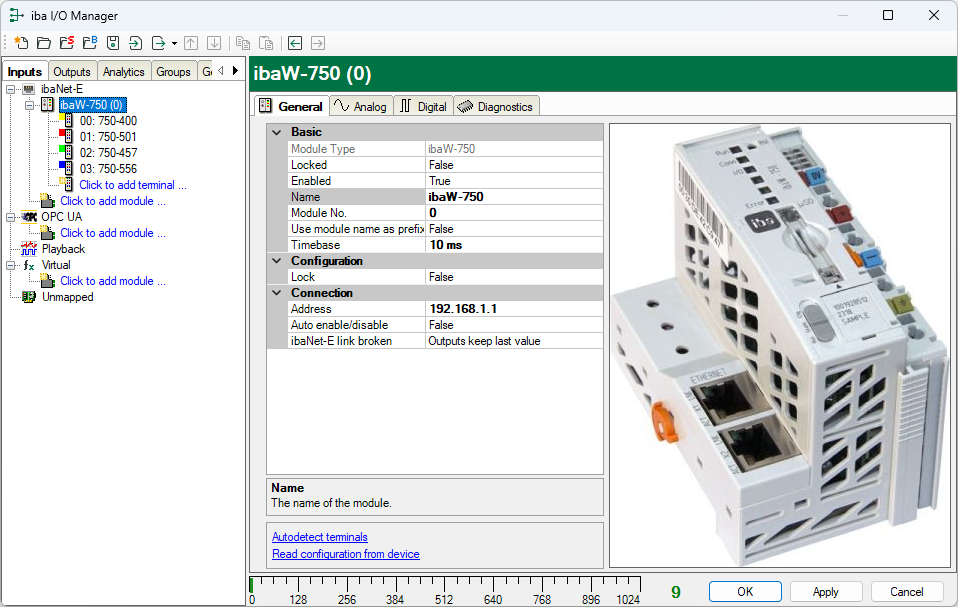

In the General tab, make the basic settings, configuration and connection settings for the "ibaW-750" device module.
Basic settings
Module Type (information only)
Indicates the type of the current module.
Locked
You can lock a module to avoid unintentional or unauthorized changing of the module settings.
Enabled
Enable the module to record signals.
Name
You can enter a name for the module here.
Comment
You can enter a comment or description of the module here. This will be displayed as a tooltip in the signal tree.
Module No.
This internal reference number of the module determines the order of the modules in the signal tree of ibaPDA client and ibaAnalyzer.
Timebase
All signals of the module are sampled on this timebase.
Use module name as prefix
This option puts the module name in front of the signal names.
Note |
|
|---|---|
 |
The timebase given here is independent from the K-bus cycle time. The K-bus cycle time depends on the number and the type of the connected terminals and may vary. The maximum cycle time on the K-bus is specified in the Diagnostics tab in the Maximum cycle time field. If each cycle is to be recorded, iba recommends that the time base for ibaPDA should not be more than half the maximum cycle time. It is always the current data telegram that is captured. |
Configuration
Lock
Blocks read and write access to the module configuration from other ibaPDA systems.
Connection
Address
Address or host name of the ibaNet-E device
Auto enable/disable
When this option is enabled and ibaPDA cannot connect to this device during the start of the acquisition then it will disable this module and start the acquisition without it. During the acquisition it will try to reconnect to the device. When it succeeds it will automatically restart the acquisition with this module enabled.
If this option is not enabled then ibaPDA won’t start the acquisition when it cannot connect to the device.
ibaNet-E link broken
This property determines what happens with the outputs on the device when the ibaNet-E link to ibaPDA is broken.
Possible options:
-
Outputs keep last value
-
Outputs are reset to zero
More functions
Autodetect terminals
The connected terminals will be detected automatically
Read configuration from device
Reads the configuration stored most recently from the device.
Modified settings are applied by clicking on <OK> or <Apply>.
