You should only carry out the module configuration in ibaPDA once the device with the connected terminals is correctly mapped in the I/O Manager.
Note |
|
|---|---|
 |

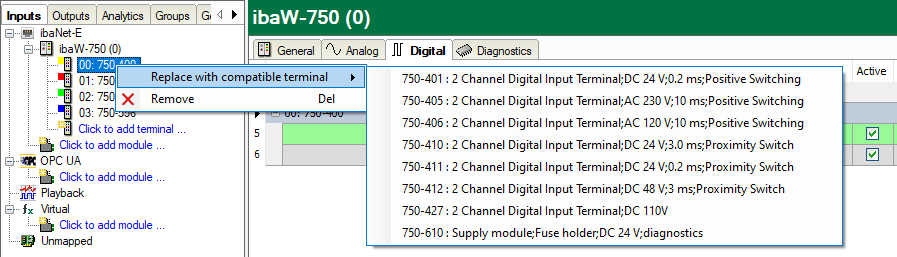

The terminal names of digital signals cannot be read out via the K-bus. However, the terminal type is correctly recognized and a terminal with the right numbers of inputs and outputs will be displayed in ibaPDA. This terminal can be replaced with another compatible terminal. Right-click on the terminal and select the desired terminal.
|
