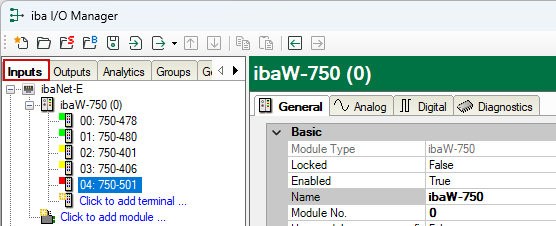

All terminals that you have either automatically detected or manually added on the input side (Inputs tab) are also displayed on the output side (under Outputs).

An Analog and a Digital tab are automatically adjusted for the analog and digital output terminals.

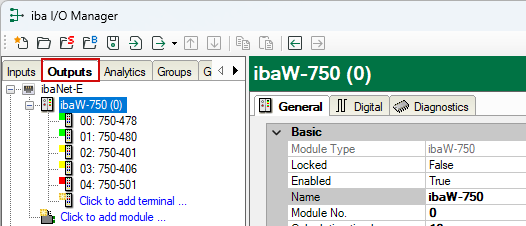

At the same time, the ibaW-750 device module is displayed in the Outputs tab on the corresponding link:

The digital signals are listed in the Digital tab and the analog signals are listed in the Analog tab.

For each signal you can specify an expression using the expression builder.

Note
	If the ibaNet-E connection to the ibaW-750 device is interrupted, the output signals behave according to the set property ibaNet-E connection interrupted in the General tab.
