A diagnostic module becomes active only after assignment to an ibaW-750 module and provides its connection information. By using a diagnostic module you can record and analyze the diagnostic information continuously in the ibaPDA system.

Diagnostic modules do not consume any license connections, since they do not establish their own connection, but refer to another module.

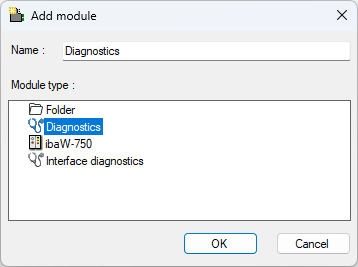

To add a diagnostic module, select the module type "Diagnostic" in the dialog Add module.

The target module is then assigned.
