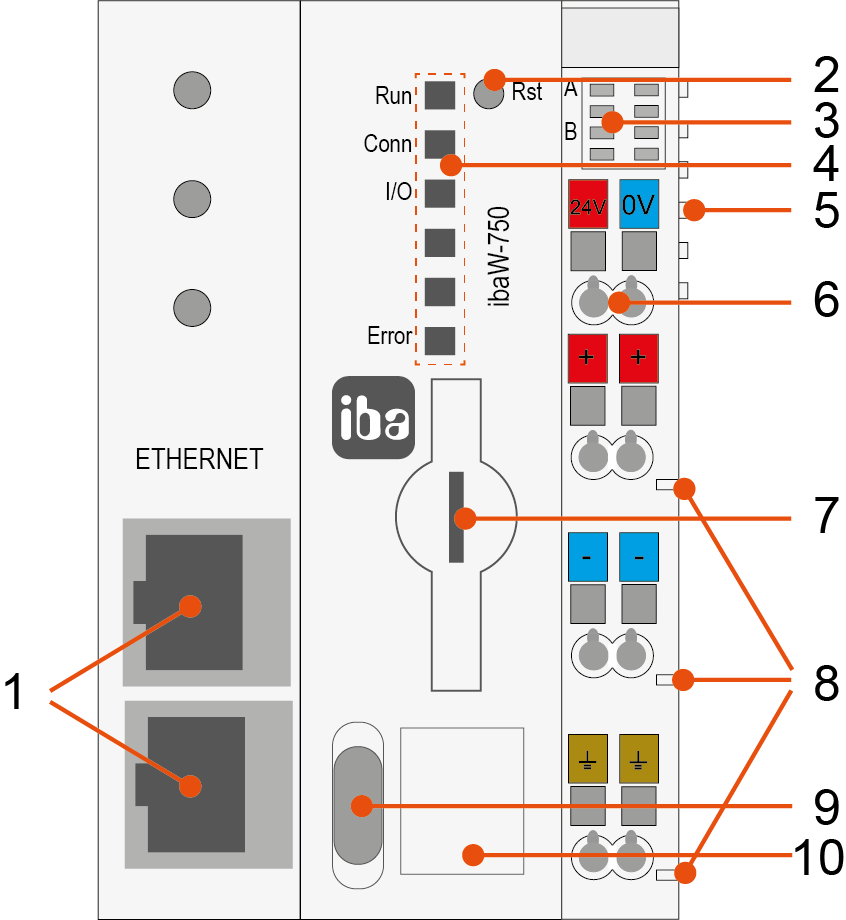

The following view shows the operating and indicating elements, as well as the connections of the device ibaW-750 .
|
1 |
Ethernet interface connection |
6 |
Power supply connections |
|
2 |
Reset button |
7 |
Memory card connection |
|
3 |
Power supply indicators |
8 |
Power jumper contacts connection |
|
4 |
Operating status indicator |
9 |
Configuration switch control |
|
5 |
Terminal bus connection |
10 |
Service interface |
