Change to the Outputs tab of the I/O Manager. Click Click to add module … under the ibaCapture node in the tree structure and select the ibaVision output type.

In the General tab, enter general settings like module name, module number, etc. For detailed information, please refer to the ibaPDA manual.

In the ibaVision process tab, select the requested ibaPDA input module from ibaVision. The configuration of an ibaVision output module is analogous to the ibaVision input module, see chapter ibaVision input modules.

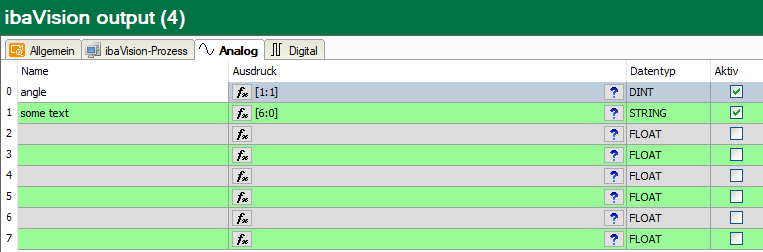

After having updated the signals, an expression has to be configured which defines the signal value that is sent to ibaVision. Select a signal or enter an expression in the Expression column in the Analog and Digital tab. You can also open the expression editor with the symbol in order to create the desired expression. For detailed information, please refer to the ibaPDA manual.
