To add a new module ibaPDA inputs, click on the link Click to add new ibaPDA input module …

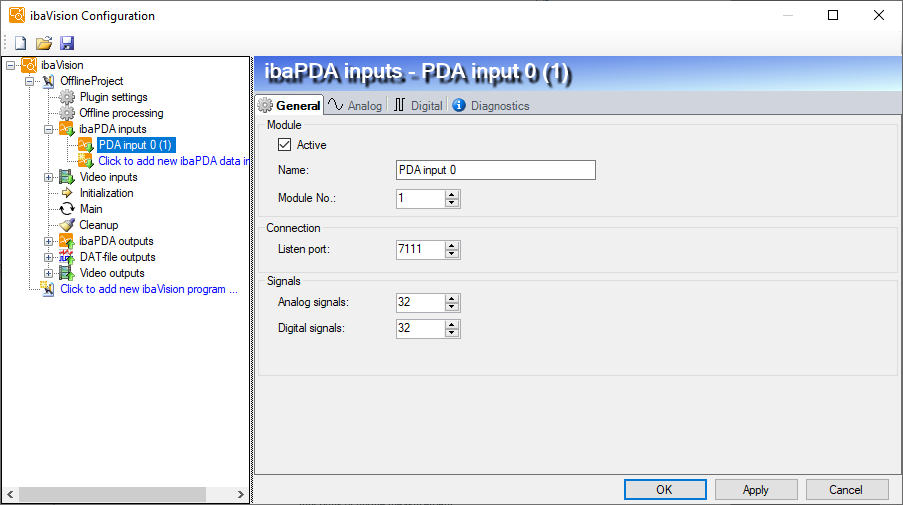

General tab
Module

Active

Here you can select if the module is active or not. Only active modules will be considered during validation of the configuration.

Name

Enter an appropriate name here. The name will be used for diagnostic purposes and log messages. The name is also displayed when setting up the module in the ibaPDA I/O-configuration.

Module No.

Logic module number for unique module reference.

Connection

Listen port

Network port for connections by ibaPDA. If another firewall than the Windows firewall is used, make sure that connections will be accepted on the defined port.

Signals

Analog signals

Defines the number of analog signals that will be received via this module. The same amount of lines will be displayed in the Analog tab. When the value is „0“, the Analog tab will not be displayed.

Digital signals

Defines the number of digital signals that will be received via this module. The same amount of lines will be displayed in the Digital tab. When the value is „0“, the Digital tab will not be displayed.

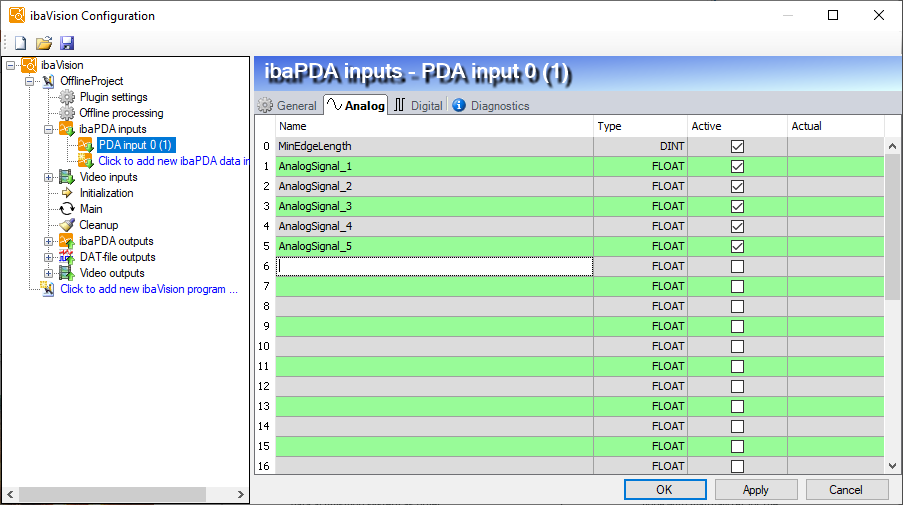

Analog tab

Enter the analog signals you want to use from ibaPDA. The individual columns in the signal list have the following meaning:

Name

Here you can enter a signal name.

Type

Data type of the signals, available data types: BYTE, INT, DINT, FLOAT, STRING.

Active

If this option is selected, the signal will be used in the current configuration. Clicking the column header will apply the active state of the selected signal to subsequent signals.

Actual

Display of the currently acquired values.

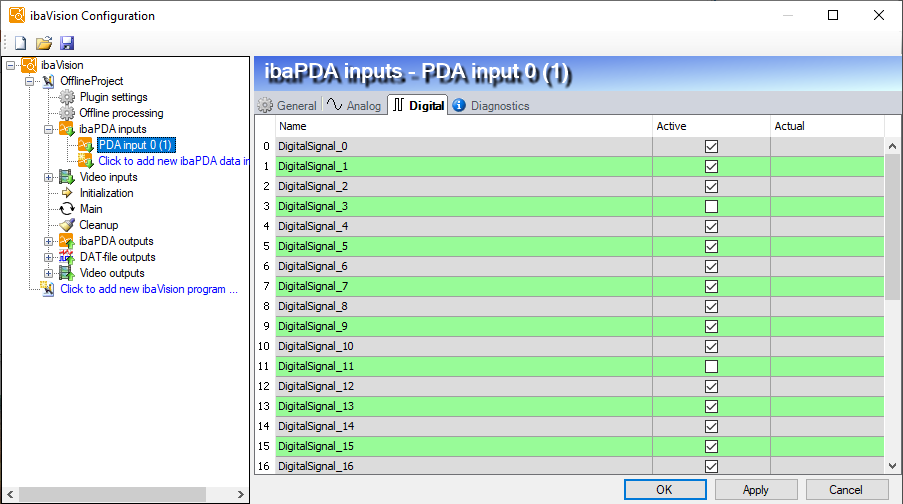

Digital tab

Enter the digital signals you want to use from ibaPDA. The individual columns in the signal list have the following meaning:

Name, Active, Actual

see Analog tab

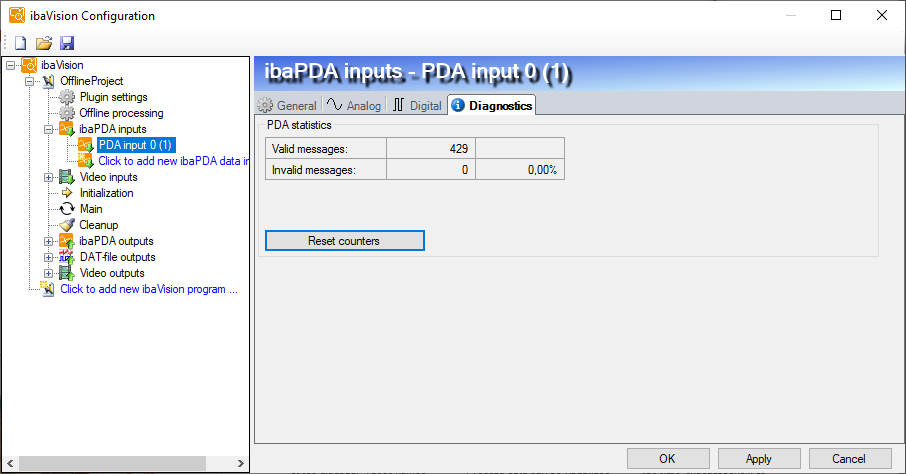

Diagnostics

The Diagnostics tab displays counters for valid and invalid messages.

A click on <Reset counters> will reset the counters.
