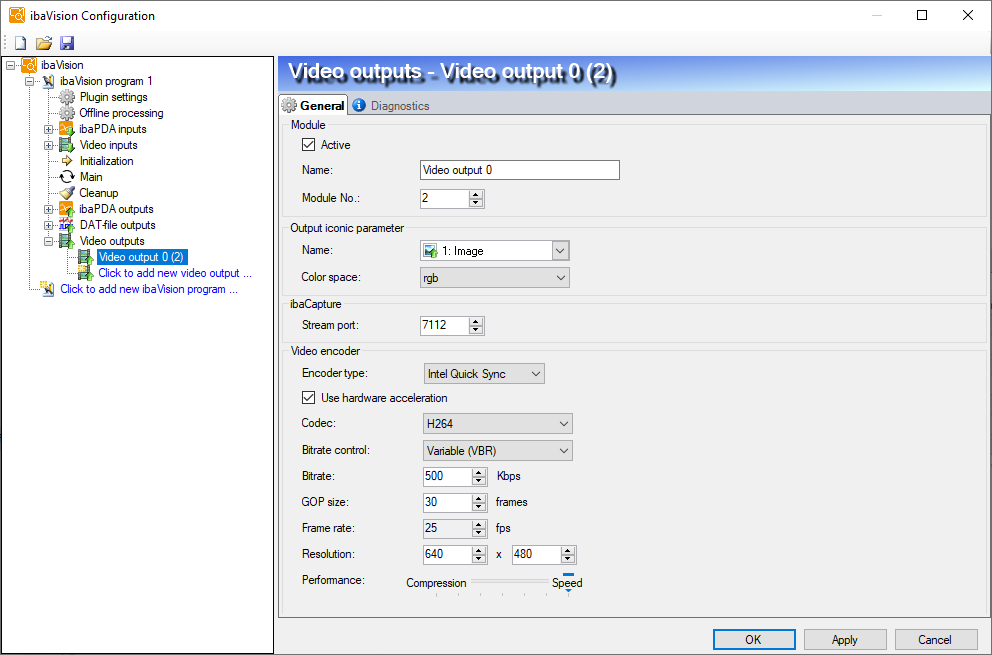

To add a new Video outputs module, click on the link Click to add a new video output… under the Video outputs node.

Module

See ibaPDA input module

Output iconic Parameter

Name

Select the output iconic parameter that is used for video output from the dropdown list.

Color space

Select the color space for the parameter, available color spaces are: rgb or gray.
ibaCapture

Stream Port

Port for connections to ibaCapture.
Video encoder

ibaVision supports Intel Quick Sync Video encoding and NVIDIA encoding. The desired encoder can be selected from a dropdown menu. The corresponding configuration options will appear accordingly.
