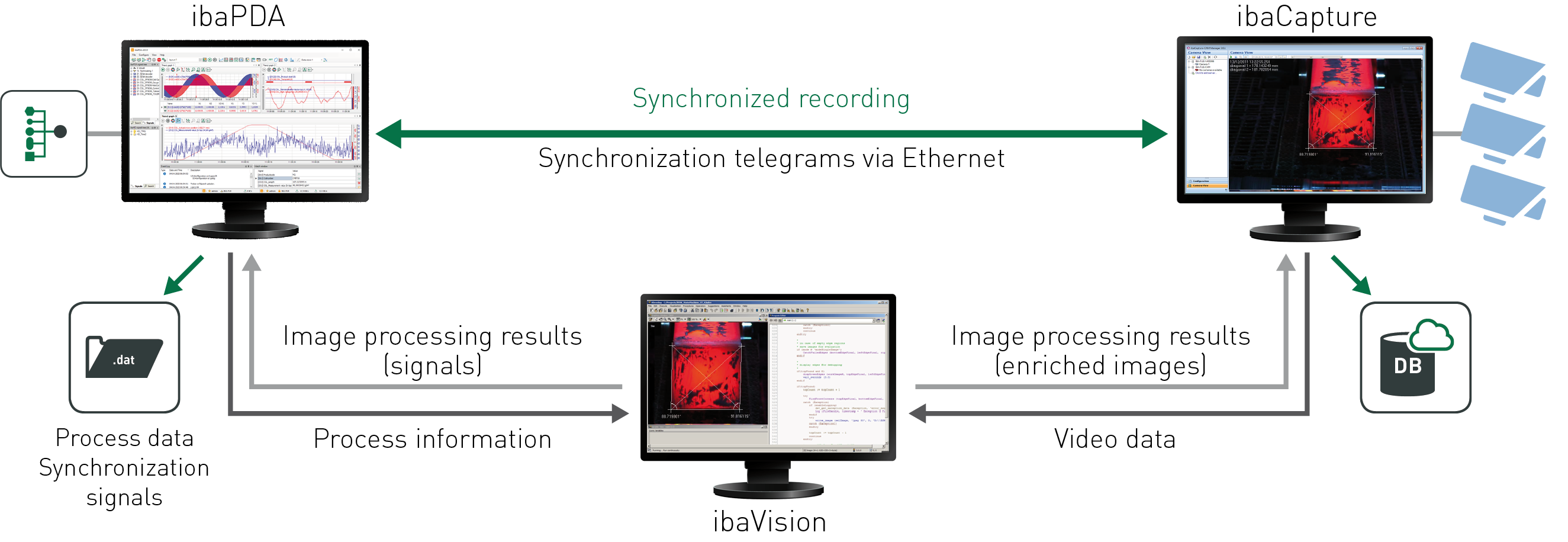

All data and image interfaces that are defined in ibaVision programs are automatically listed and can be flexibly linked to signals in the iba system. Both signal and image information can be used bidirectionally. The resulting values are recorded in ibaPDA. If necessary, process signals which are already available in ibaPDA, can be sent to ibaVision in order to adapt the running image analysis.

Cameras that are configured in ibaCapture can be used as image sources. Finally, resulting images from the image analysis which may contain markers or other additional visual information, can be encoded into a video stream. With ibaCapture such streams can again be recorded using a virtual camera.
