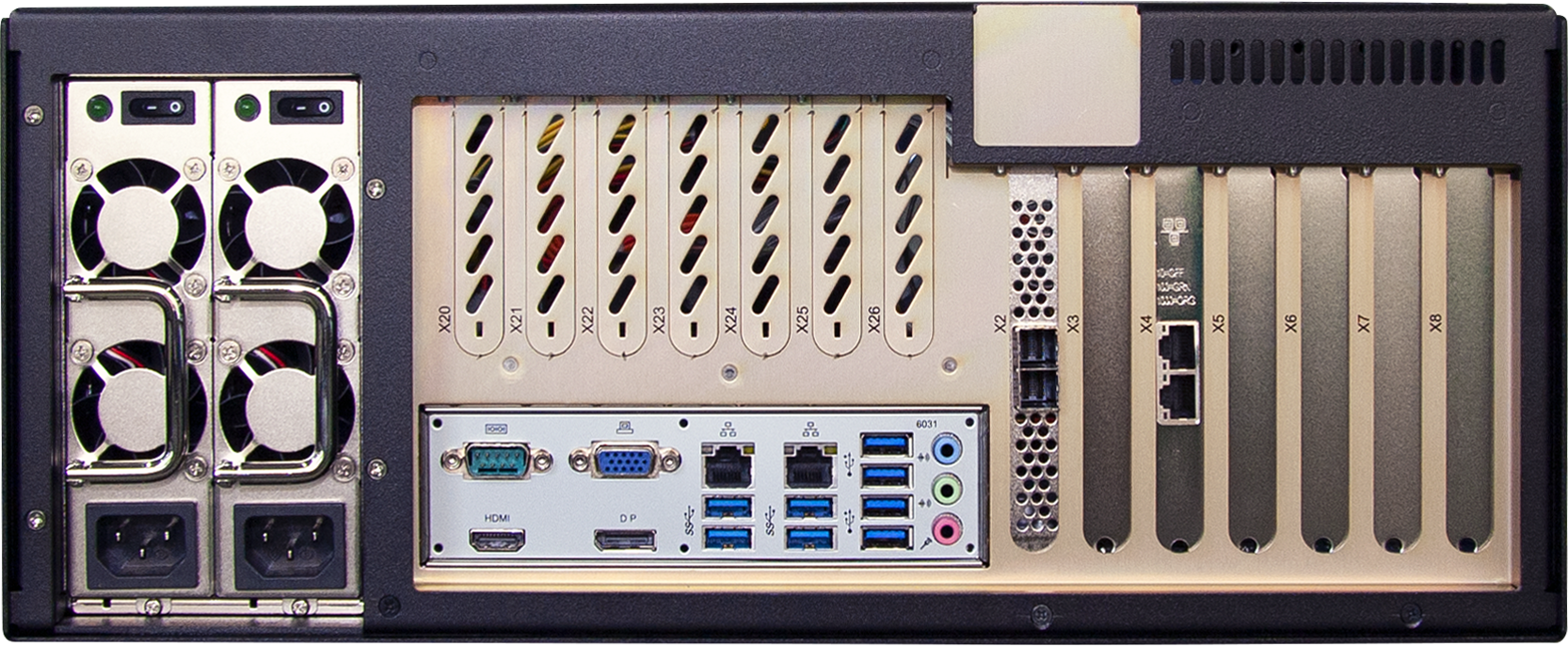

On delivery, the data acquisition cards and other additional cards are installed by default in the slots as described below.

Specfic slots for the mainboards

  • Slot X2: controller

Installation slots for data acquisition cards (X3 – X7)

  • The cards are installed starting with slot X7 to slot X3

    (X7 corresponds to the first card, card no. 0)

Installation slots for cards with rackline slots (X20 - X26)

  • ibaOut-Temp or ibaOutState is installed in slot X20

  • ibaFOB-4o-D rackline-slot is installed starting with X25 and connected to X7 downwards.

  • ibaFOB-4o-D rackline-slot as sync-out (mirroring output ) is installed in X26 and connected to X7

Connections of ibaFOB-4o-D with ibaFOB-xi-D input cards:

  • X25 - X7

  • X24 - X6

  • X23 - X5

  • X22 - X4

  • X21 - X3

Installation slots for additional network cards

  • Additional network cards are installed starting with slot X3

  • GigE cards are installed in the slots X4 and X5

  • A PCI card is installed in slot X8 (e.g. CP1616)
