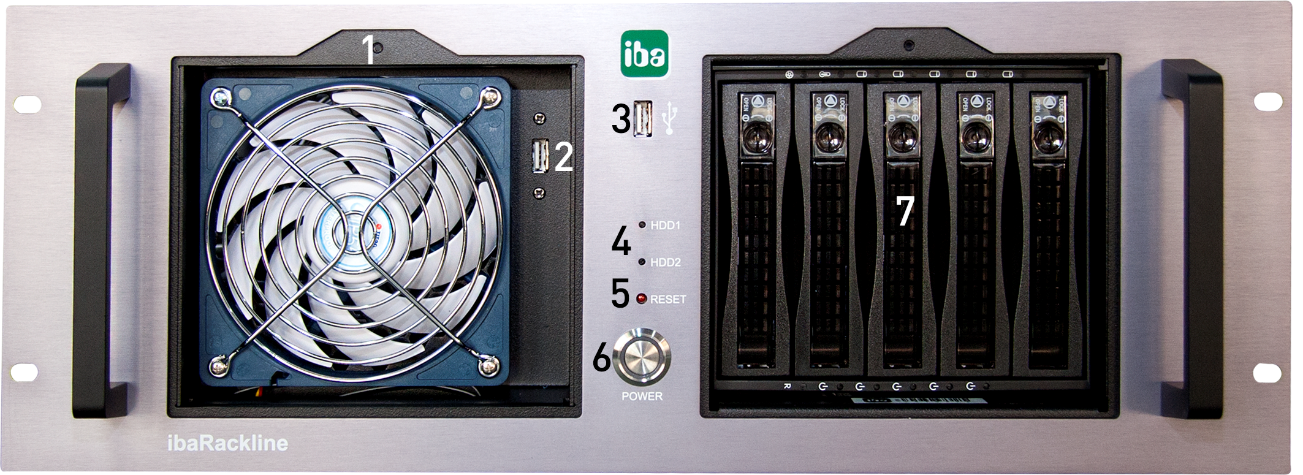

Front view
(Image without cover panels)
|
1 |
Fan (can be replaced from the front) |
5 |
Reset button |
|
2 |
USB interface for hidden dongle mounting |
6 |
Power button |
|
3 |
USB interface |
7 |
Plug-in slots for hard disks |
|
4 |
LEDs (hard disk indicators) |
Note |
|
|---|---|
 |
On delivery of the device the iba software license key is in the documentation or on client's request plugged-in in the device. |

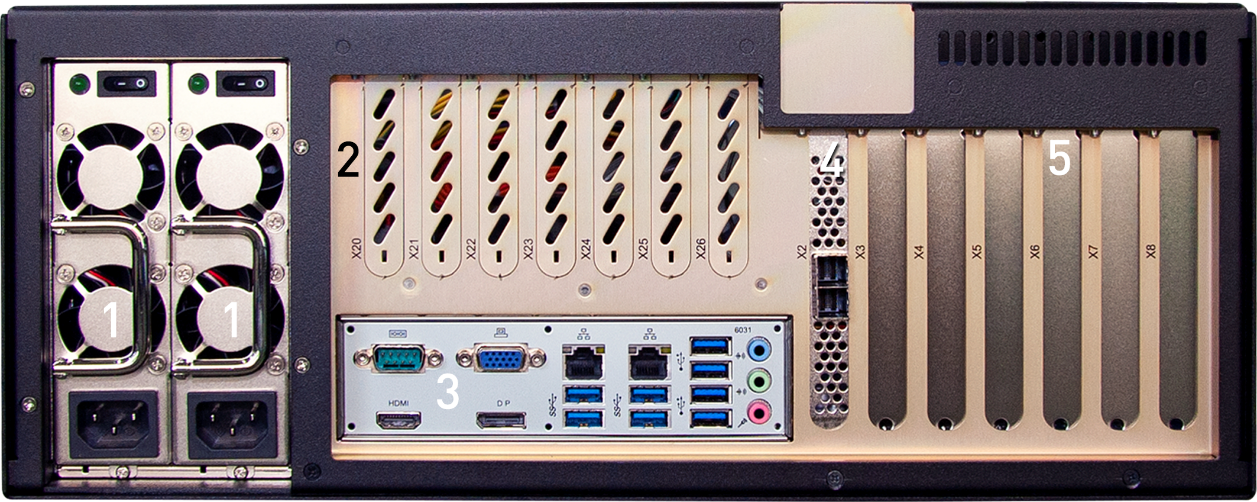

Rear view
|
1 |
2x Power supply with switch and panel plug for non-heating appliances, replaceable |
4 |
Slot for controller |
|
2 |
Slots X20 to X26 (for low-profile iba cards) |
5 |
Free slots X3 to X7 (PCIe), X8 (PCI) |
|
3 |
Connections for external devices (keyboard, mouse, network etc.) |

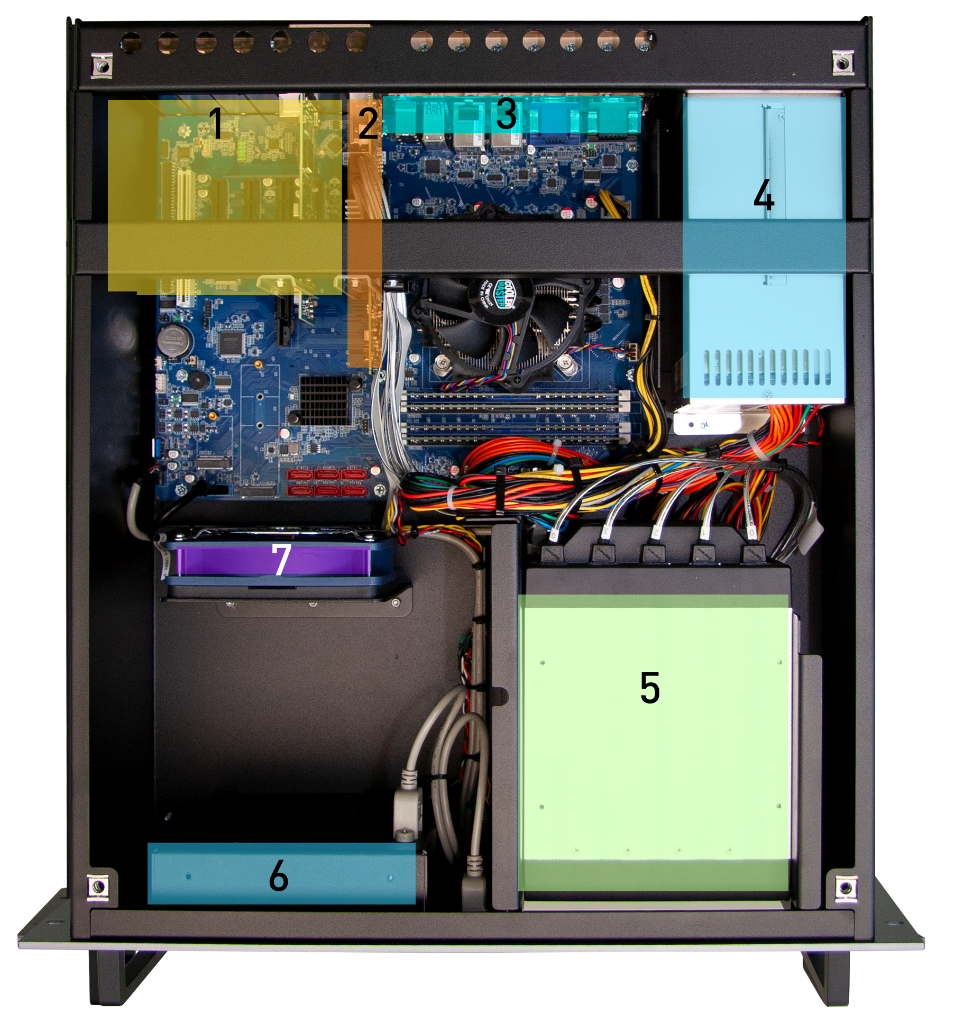

Internal view
|
1 |
PCI Express slots |
5 |
Drive frame |
|
2 |
Controller |
6 |
Fan ( Ø 12 cm), mounting angle for redundant power supply unit |
|
3 |
Slots for low-profile iba cards |
7 |
Additional fan (as option) |
|
4 |
Power supply unit (for RAID systems redundant) |
|
1 |
Hold-down clamp |
