If needed, it is possible to install one or two additional fans in the slots X21 to X26. Each fan requires the space of 3 slots.

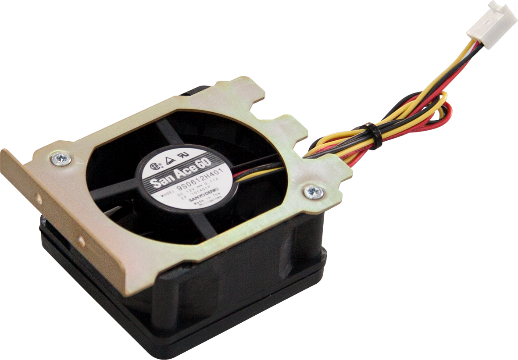

Fan 60 x 60 x 25 mm complete module

Order no. 43.000365

After having opened the housing cover proceed as follows:

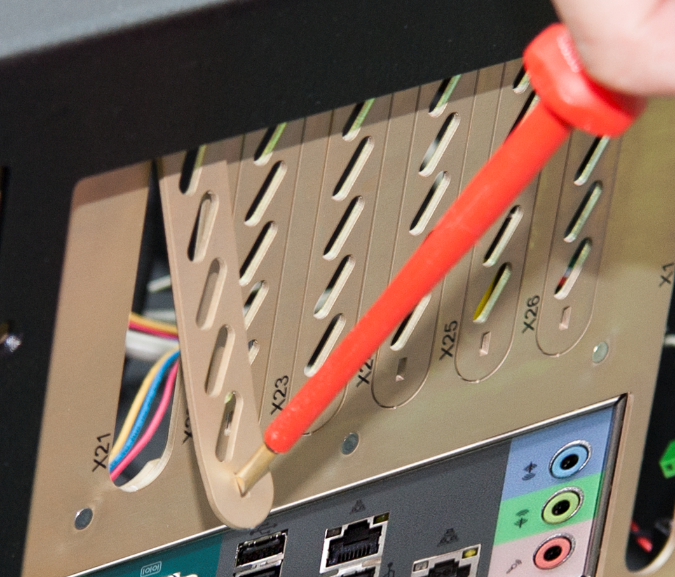

  1. Break out the cover plates of the required slots using a screw driver. For one fan X21 to X23, for 2 fans X21 to X26.

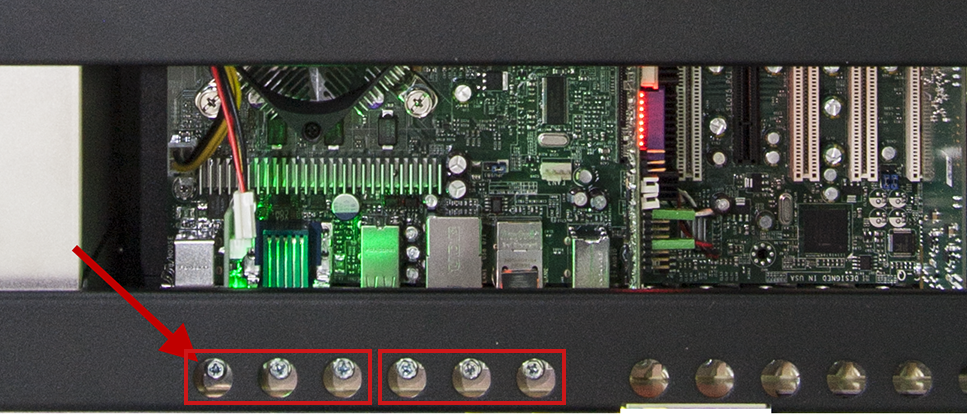

  2. Loosen the screws in the openings above the slots.

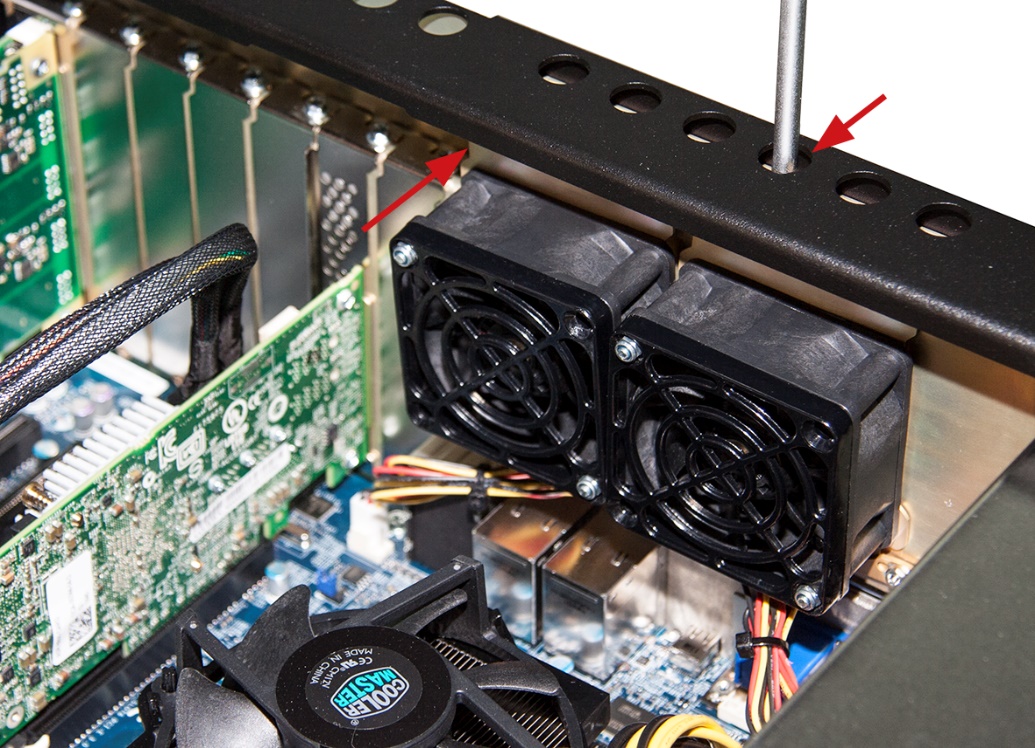

  3. Insert the fan module on the inner side on the rear cover, for this purpose push the bent slot bracket onto the rear cover. Fasten the fan with the screws removed before.

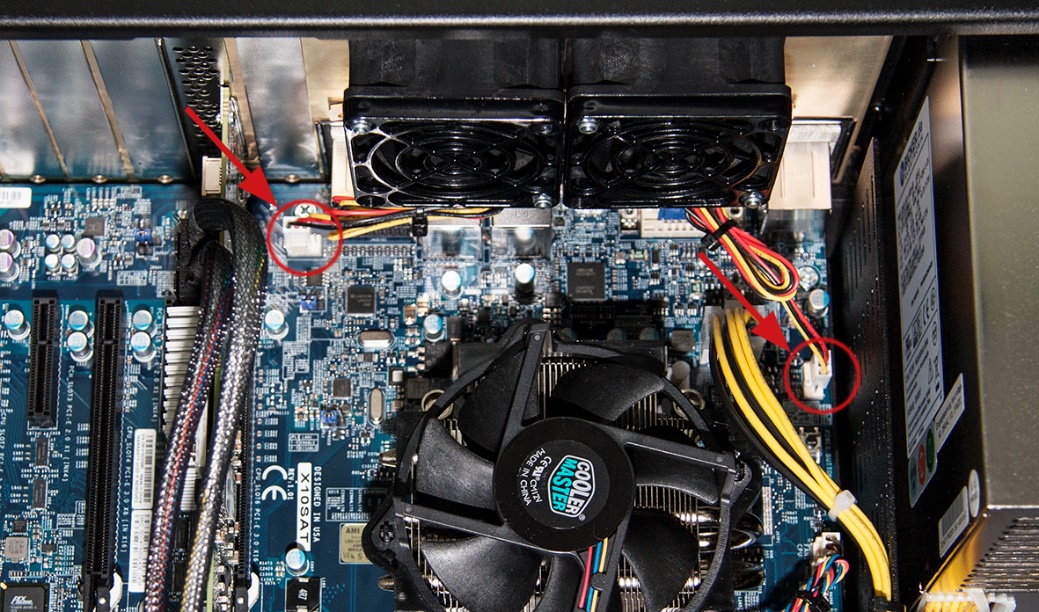

  4. Insert the plug of the fan power supply cable into the appropriate plugs on the motherboard, see picture below.

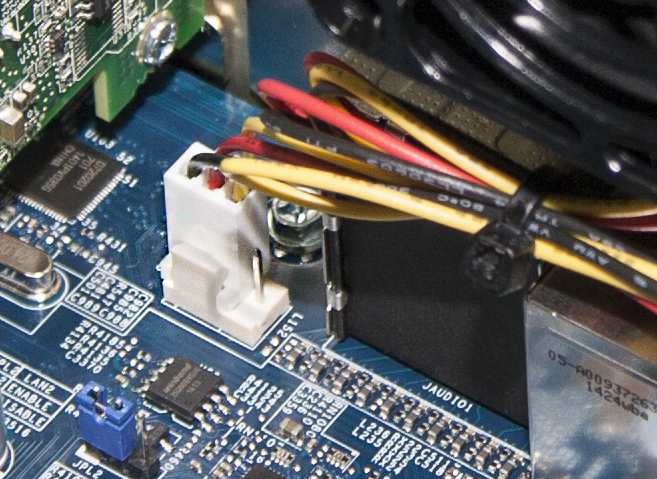

  5. The guide pins on the plug ensure a proper position of the connection.



  6. Close the housing cover.
