On delivery, the data acquisition cards and other additional cards are installed by default in the slots as described below.

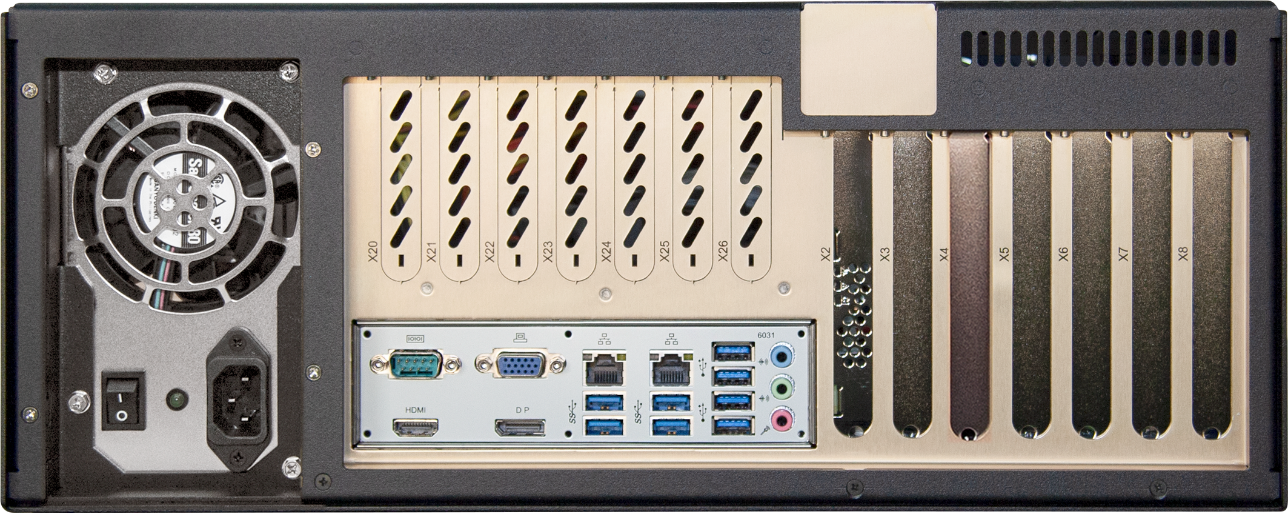

Installation slots for data acquisition cards (X3 – X7)
-
The cards are installed starting with slot X7 to slot X3
(X7 corresponds to the first card, card no. 0)
Installation slots for cards with rackline slots (low-profile, X20 - X26)
-
ibaOutState is installed in slot X20
-
ibaFOB-4o-D rackline-slot is installed starting with X25 and connected to X7 downwards.
-
ibaFOB-4o-D rackline-slot as sync-out (mirroring output ) is installed in X26 and connected to the first ibaFOB-xi-D card
Connections of ibaFOB-4o-D with ibaFOB-xi-D input cards:
-
X25 – X7
-
X24 – X6
-
X23 – X5
-
X22 – X4
-
X21 – X3
