The following views show the components and displays of the ibaRackline device.

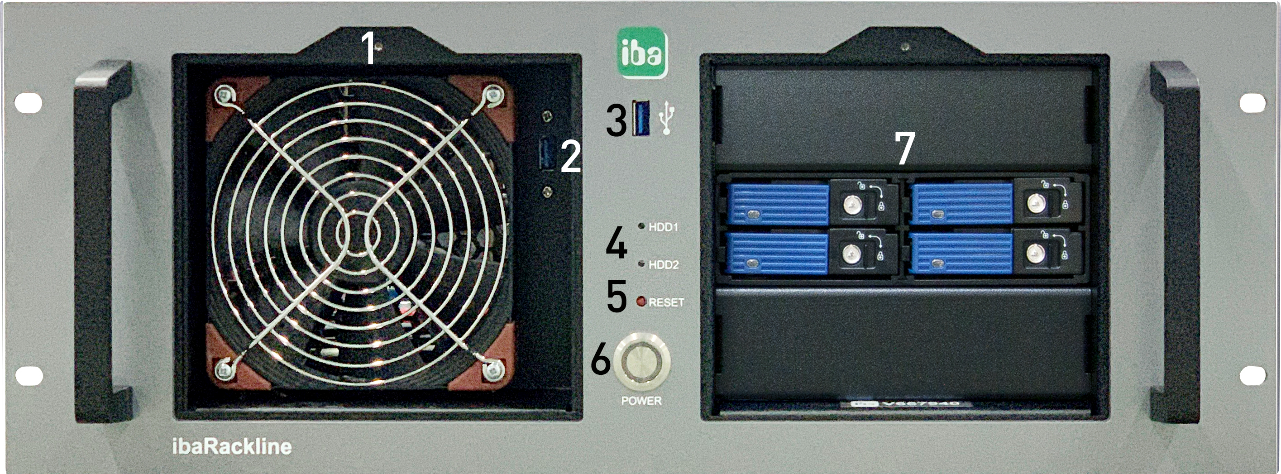

Front view
(Image without cover panels)
|
1 |
Fan (can be replaced from the front) |
5 |
Reset button |
|
2 |
USB interface for hidden dongle mounting |
6 |
Power button |
|
3 |
USB interface |
7 |
Plug-in slots for hard disks |
|
4 |
LEDs (hard disk indicators) |
Note |
|
|---|---|
 |
On delivery of the device the iba software license key is in the documentation or on client's request plugged-in in the device. |

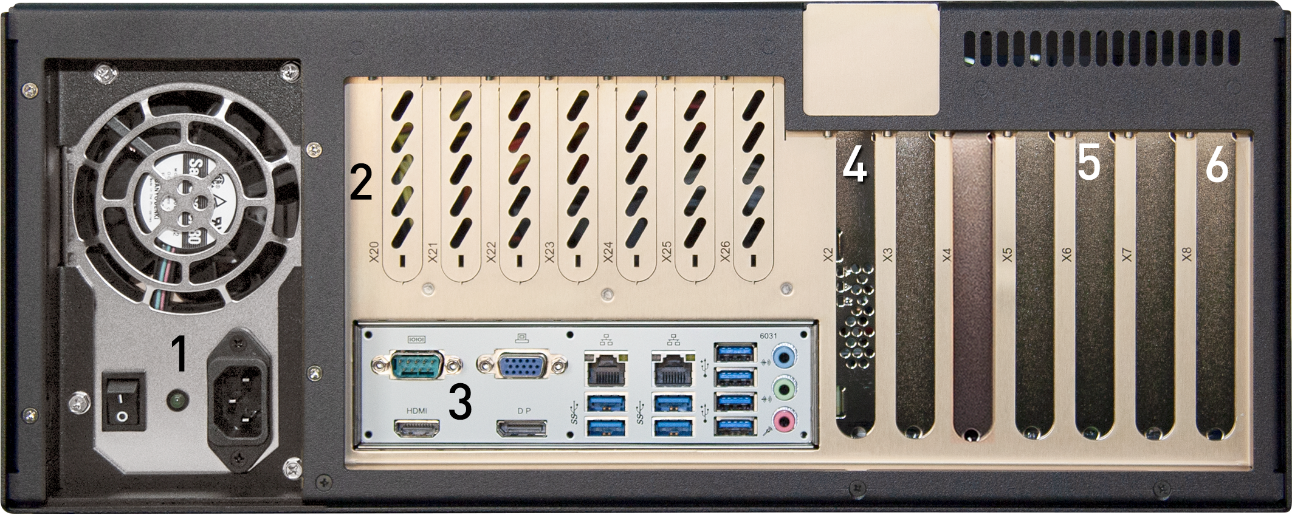

Rear view: standard system version
|
1 |
Power supply with switch and panel plug for non-heating appliances |
4 |
Hard disk controller |
|
2 |
Slots X20 to X26 (for low-profile iba-cards, e.g. ibaFOB-4o-D) |
5 |
Slots X3 to X7 (PCIe) |
|
3 |
Connections for external devices (keyboard, mouse, network etc.) |
6 |
Slot X8 (PCI) |

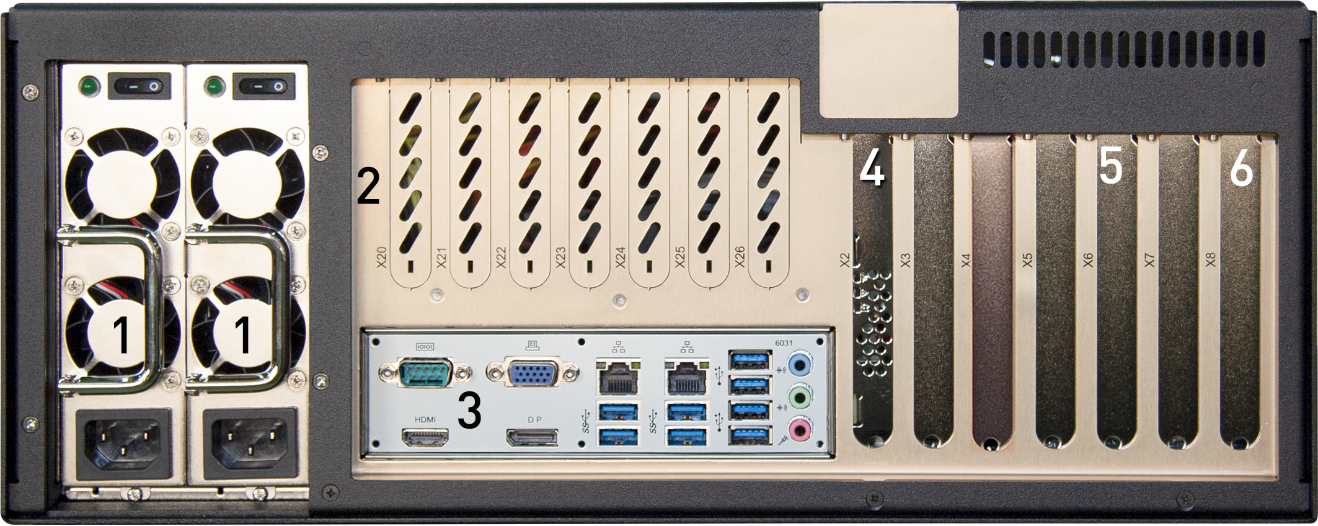

Rear view: Version with redundant power supply (e.g. RAID system)
RAID systems are equipped with a redundant power supply unit.
|
1 |
2x Power supply with switch and panel plug for non-heating appliances, replaceable |
4 |
Hard disk controller |
|
2 |
Slots X20 to X26 (for low-profile iba-cards, e.g. ibaFOB-4o-D) |
5 |
Slots X3 to X7 (PCIe) |
|
3 |
Connections for external devices (keyboard, mouse, network etc.) |
6 |
Slot X8 (PCI) |

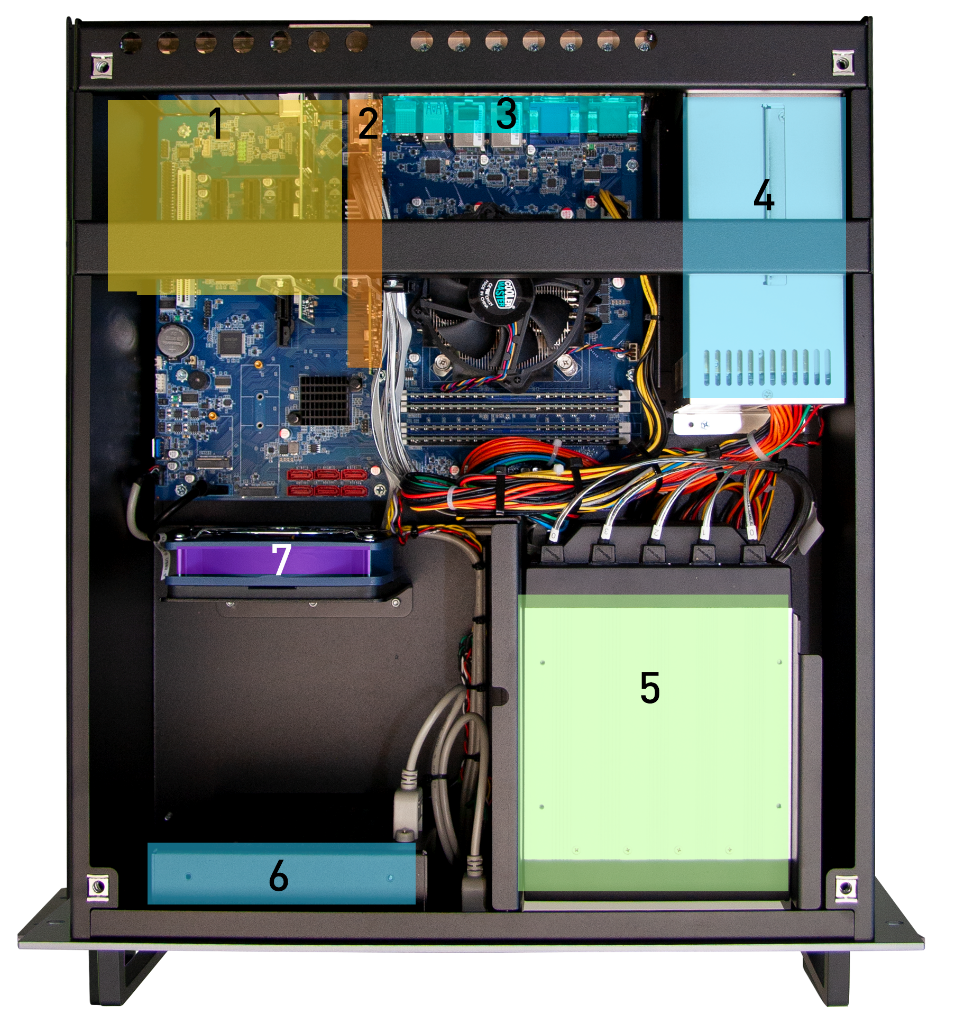

Internal view
|
1 |
5x PCIe slots, 1x PCI slot |
5 |
Drive frame |
|
2 |
Hard disk controller |
6 |
Fan ( Ø 12 cm) |
|
3 |
Slots for low-profile iba-cards or additional fan (as option) |
7 |
Additional fan (as option) |
|
4 |
Power supply unit (for RAID systems redundant) |
|

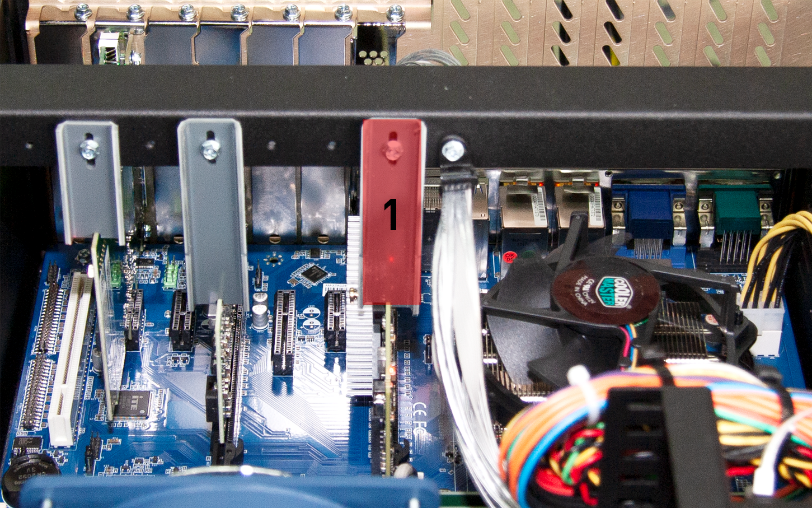

1 |
Hold-down clamp |
