Watch view

Function

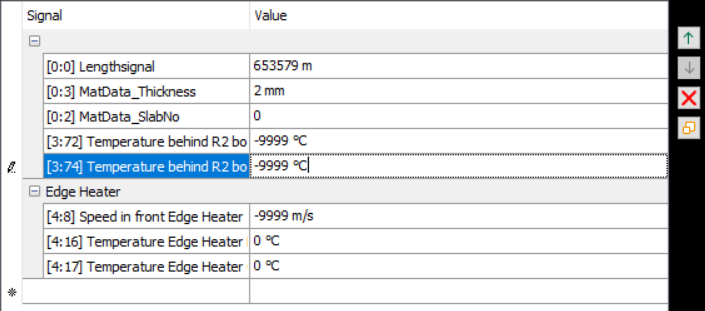

In the watch view, the actual values of signals are displayed in a table and can thus be monitored easily. Both numerical and text signals can be displayed. Signals from ibaPDA and the ibaHD-Server are supported.

Configuration

You can format the numeric values in the Properties dialog of the watch view. When you exit design mode, drag the signals to the display to view them.

You can drag and drop one or more signals from the ibaPDA or ibaHD signal tree into the watch view. You can also select the signals from the drop-down list in the signal column..

The buttons on the right can be used to change the order of marked signals and to remove signals. You can select multiple lines by holding down the <Shift> and/or <Ctrl> key.

With the button <Assign rows to a section> you can organize the table into sections. Select one or more lines that you want to assign to a section, press the button and enter a name for the section. You can define any number of sections.
