In the Properties dialog of a trend graph, this branch is only available if vector signals are put on the trend graph.

Unlike the standard trend graph, the ibaQPanel trend graph can display 2D color diagrams as you might know from ibaAnalyzer.

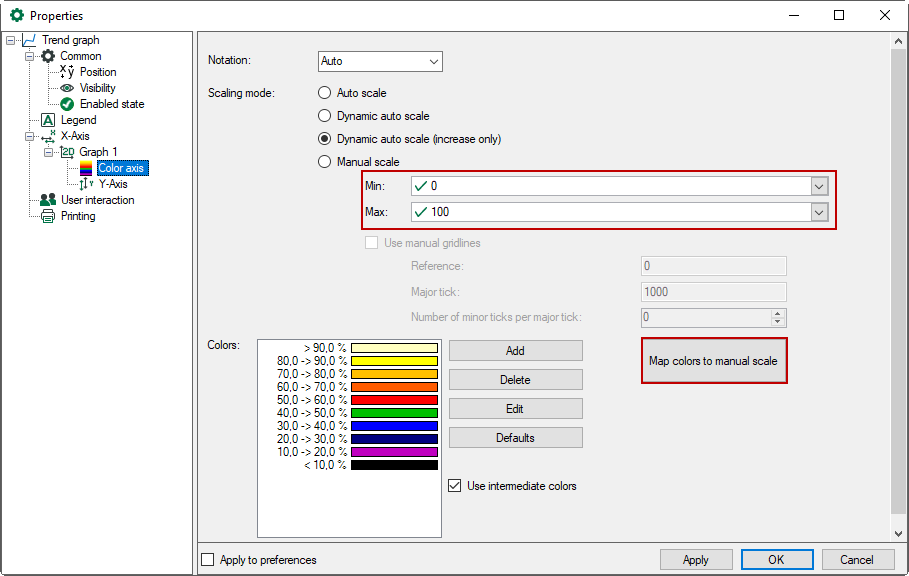

The red-framed parameters in the figure above are only available in the trend graph’s properties.

The color axis scheme is automatically applied as soon as a vector signal has been assigned to a trend graph. The values of the vector’s signals are displayed by colors.

If you manually scale the color axis, you can set the lower and upper value of the scale. When you press the button <Map colors to manual scale> you can see the correspondence between scale values and colors in the color scheme. You can add, change or delete colors according to your needs.

Enable the <Use intermediate colors> option for a smoother color transition.
