You can find further buttons in the toolbar of the designer which can be useful for the layout of the different objects.
|
Button |
Description |
|---|---|
|
|
Align selected objects to the left |
|
|
Center selected objects horizontally |
|
|
Align selected objects to the right |
|
|
Align selected objects to the top |
|
|
Center selected objects vertically |
|
|
Align selected objects to the bottom |
|
|
Make selected objects the same width |
|
|
Make selected objects the same height |
|
|
Equal horizontal distance between the selected objects |
|
|
Equal vertical distance between the selected objects |
|
|
Object in foreground |
|
|
Object in background |

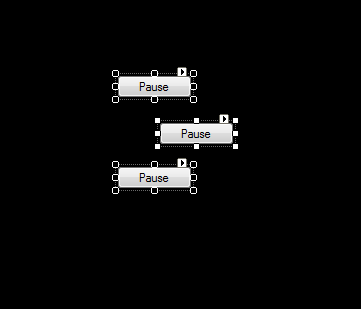

The positioning always refers to the object whose control points are filled. This is the first when selecting with <shift> key or the last when working with the frame.
Example: The option “Align to the Top” does not refer to the last object, but to the upper edge of the reference object, this means the one with the filled control points.
