Function
With the switch, you can write two binary states (ON/OFF) to a writeable signal. The states can be visualized by different images.
The target signal requires an analog or digital signal from a virtual module of the type ibaQPanel input. The ibaQPanel input module can be found in the I/O Manager in the Analytics tab under the virtual modules.

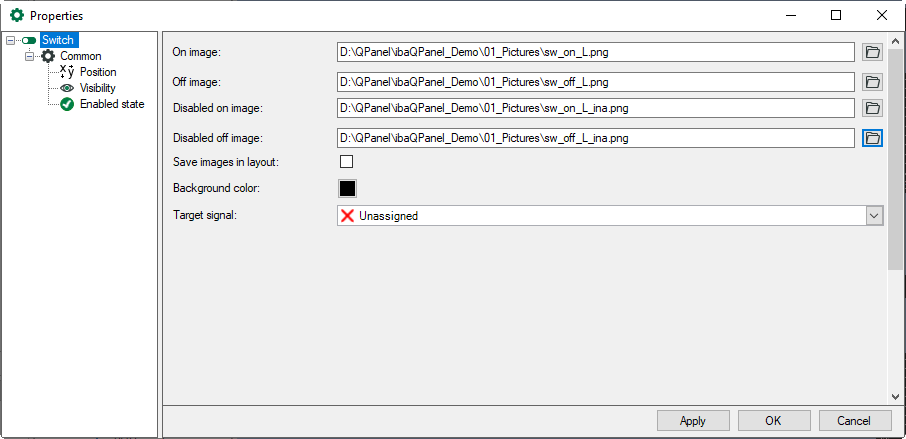

Configuration
Internal default images are used for the ON and OFF switch states. These are replaced when own images are selected.
If a switch is deactivated, the states disabled ON and disabled OFF can be visualized by separate images, too.
For every state, you can select an image file from the file browser. The images can have any bitmap image format, such as bmp, jpg, png, etc. The background color is valid for all states. Select the ibaQPanel input signal you want to write to at target signal.
