Function
The slider is used to write a signal value to a writeable signal. The value can be selected by simply dragging a slider.
The target signal requires an analog or digital signal from a virtual module of the type ibaQPanel input. The ibaQPanel input module can be found in the I/O Manager in the Analytics tab under the virtual modules.

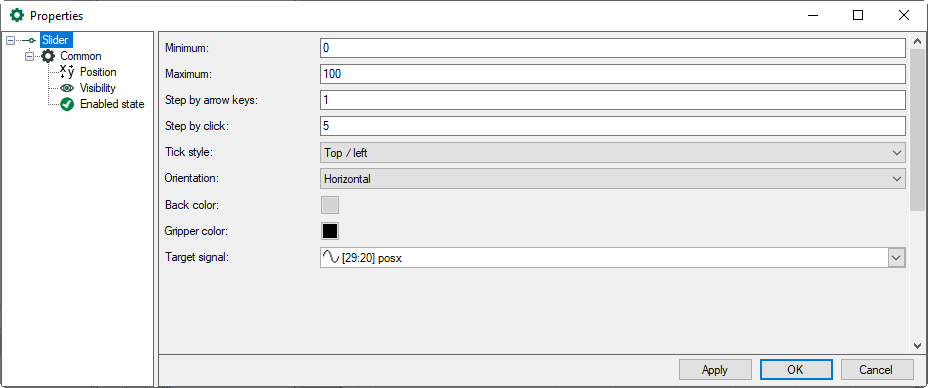

Configuration
The Minimum and Maximum values define the value range of the slider.
You can move the gripper with the mouse button pressed, or via the arrow keys or single mouse clicks. You can define the respective increment in the two fields Step by arrow keys and Step by click.
You can orient the slider horizontally or vertically. Accordingly, the scale can be arranged bottom/right or top/left.
The background color and the color of the gripper can be freely selected with the color editor.
The ibaQPanel input signal to be written is selected under Target signal.
