Rectangles, ellipses and polygons can be filled with a gradient. Click on the filling button to open the gradient editor, and select “Gradient”.

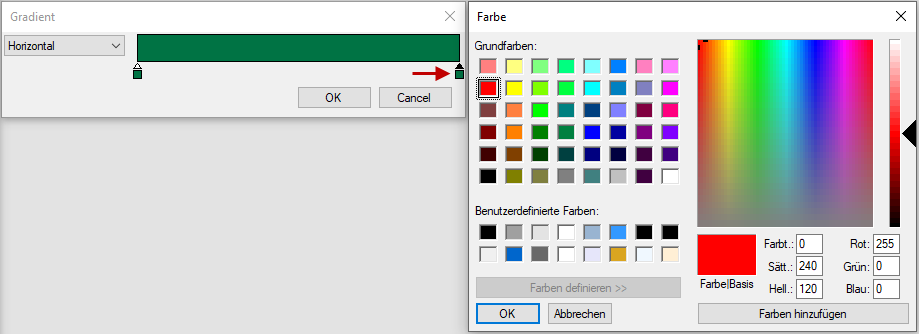

You can define the gradient using the slide controller. By double-clicking on an anchor point, you can open the color editor to select the color.

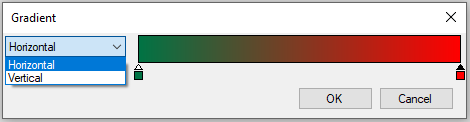

The gradient will be displayed in the color field. You can select the gradient direction (horizontal or vertical) from the dropdown menu.

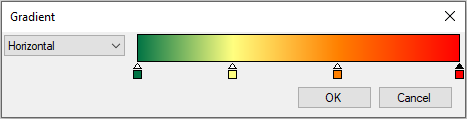

By double-clicking in the color field, you can add new anchor points. The anchor points can be moved by keeping the mouse button pressed. The end points cannot be moved. To remove a previously added anchor point again, mark the anchor point and press the <Delete> key.
