Scope view

Function

Functions and properties of the scope view in ibaQPanel correspond to those of a normal scope view in ibaPDA. Each view supports one base axis and multiple signals on multiple value axes.

Signals can be dragged from the ibaPDA signal tree onto the view to add them. If the signal is dropped on the chart, a new value axis will be created. To add a signal to an already existing axis, drop the signal on that axis. Every value axis will have the same color as the first signal it contains.

The scope view offers specific display and control elements. You can find the description in chapter Indicating elements.

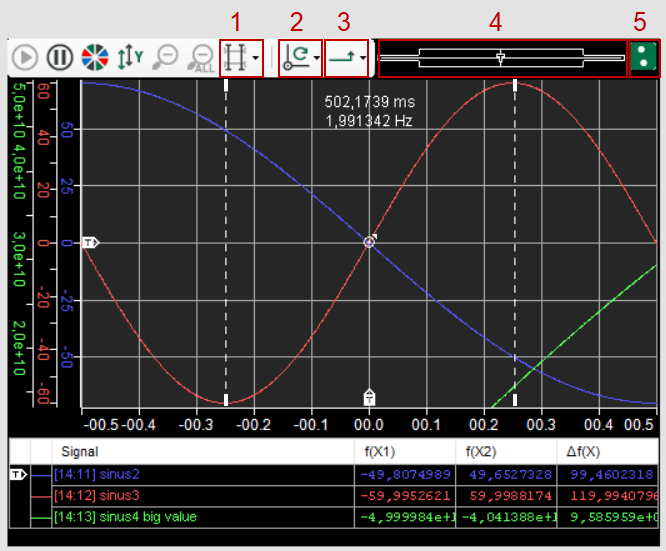

1 marker display 2 trigger mode 3 trigger edge 4 memory length 5 trigger state
