Function
With the radio button strip, you can write a signal value to a writeable signal. You can define several options with different signal values. By selecting one of the radio buttons, you can activate it and the corresponding value will be written to the target signal.
The target signal requires an analog or digital signal from a virtual module of the type ibaQPanel input or of the type ibaQPanel text input for entering texts. The modules ibaQPanel input and ibaQPanel text input can be found in the I/O Manager in the Analytics tab under the virtual modules.
Note |
|
|---|---|
 |
The value must be unique. If several values are identical, the text of the first value found is displayed (search from top to bottom). |
Configuration
Appearance

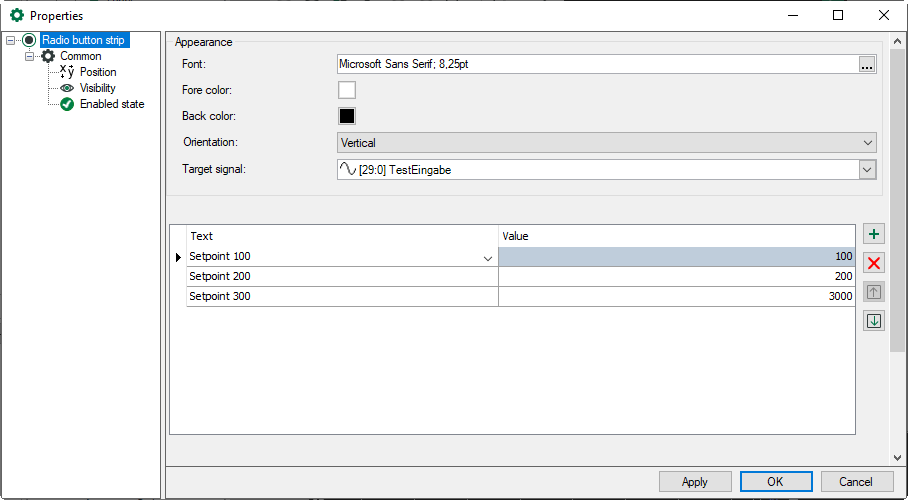

You can select here the font type of the displayed text as well as the background and the foreground color (= text color). With “Orientation”, you can define, whether the radio buttons should be arranged vertically or horizontally. For “Target signal”, select the ibaQPanel entry signal that you want to write to. In the table, you can define the displayed text and the related value. The buttons on the right facilitate the editing of the list:
|
|
Inserts a new line |
|
|
Deletes the highlighted line |
|
|
Shifts the marked line to the top or the bottom |
Example
