Function

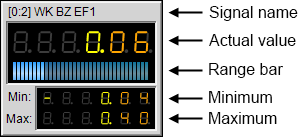

The numeric digital display shows the actual value of an analog signal. Optionally, it can show the minimum and maximum values of a signal (resettable). It can also show a range bar showing the position of the current value between the minimum and maximum signal value. Minimum and maximum value as well as the range bar can be enabled or disabled in the context menu.
Configuration

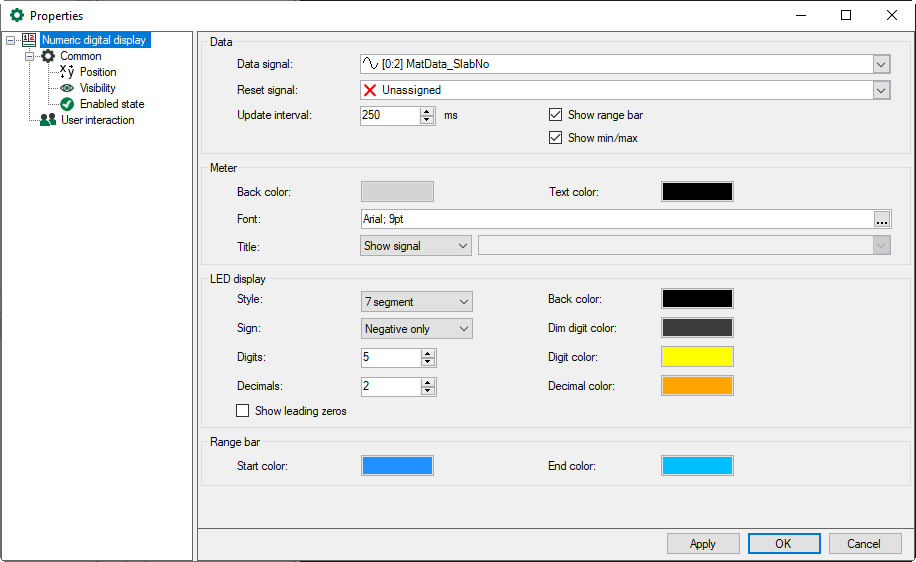

In the preferences and properties of the ibaQPanel numeric display there are the same settings available like in the preferences for the normal digital numeric display.

Data

Here you define the analog signal whose value is shown in the digital numeric display. You can select a digital signal as reset signal which resets the minimum and maximum value of the display. The update interval determines the update rate for the display. You can enable the display of the range bar as well as the display of minimum and maximum value of the signal.

Meter

Here you define the color and label of the frame. In addition to texts, custom combinations are also possible in the title, e.g., signal name and unit.

LED display

Here you define style and format of the value display. You can choose between a 7 or a 14 segment display, set the number of digits and decimal positions and select the colors.

With the option “Sign”, you decide how to deal with positive/negative signs.

    • Never: Neither "+" nor "–" are displayed

    • Negative only: "+" is not displayed

    • Always: Both "+" and "-" are displayed

Range bar

Set up the start color and end color of the range bar in order to get a color gradient e.g. from green to red.
