Function
With the HD navigation, several HD trend graphs can be controlled simultaneously. As in the default HD trend graph, the zooming and navigation elements are available, buttons for play and pause as well as the zoom reset-button which resets all connected HD trend graphs to the state before the zooming.
|
|
Zoom function |
|
|
Auto zoom |
|
|
Zoom reset |
|
|
Display/hide the marker table |
|
|
Play, pause |
|
|
Scroll (big and small steps) |
|
|
Jump to a date |
Configuration

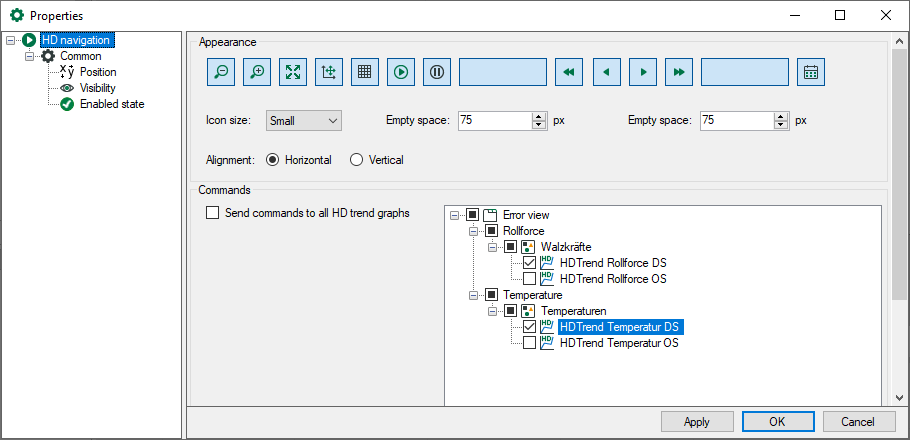

Appearance
By clicking on the button, the display can be switched on and off in the HD navigation. Buttons with gray color are not displayed.
You can choose the icon size in the drop-down menu: small, medium, large. And you can define the space between the icon groups in the Empty space field.
You can choose whether the HD navigation is aligned horizontally or vertically.
It is possible to use several HD navigation objects. However, each object can be configured individually with regards to appearance, position and even commands.
Commands
Here, you can choose the HD trend graph to be controlled via HD navigation. When the option Send commands to all HD trend graphs is enabled, all HD trend graphs will be operated with one HD navigation.
When this option is disabled, check boxes will appear in the tree before each HD trend graph which you can mark separately.
