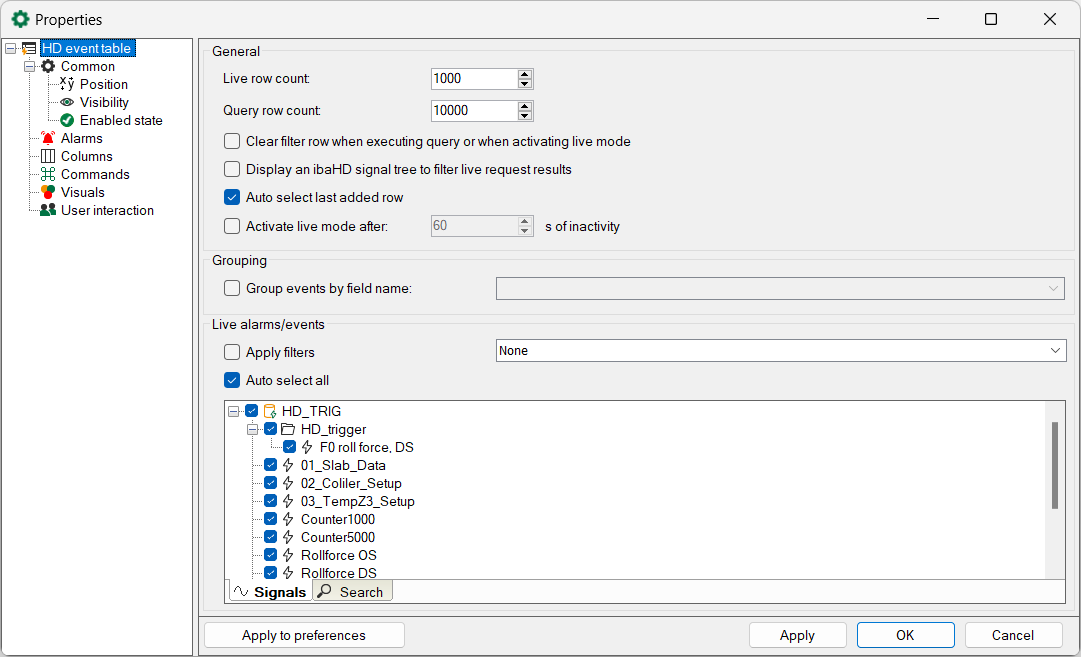

In the Properties dialog, you determine the length of the event table and select the events to be displayed.

Live/query row count

Here, you set how many lines will be displayed in the event table in live mode. Maximum 1000 lines can be displayed. You can also specify the number of rows of query results.

Clear filter row when executing query or when activating live mode

When you enable this option, then the search patterns that you may have entered in the filter row are automatically deleted as soon as you execute a query or switch to the live mode of the event table. You therefore do not have to remember to manually remove the filter terms again.

Display an HD signal tree to filter live request results

Enabling this option displays the tree structure for the HD events.

Auto select last added row

Enabling this option will cause the newest row being selected automatically. Thus, the most recent event will always have the focus.

Activate live mode after ... s of inactivity

Enabling this option will cause the view to return automatically from pause mode to live mode if no mouse or keyboard operation occurred over the set time span (given in seconds).

Grouping

For better overview, event tables can be displayed in groups according to their field names. Field names will be assigned to the events when configuring the recording.

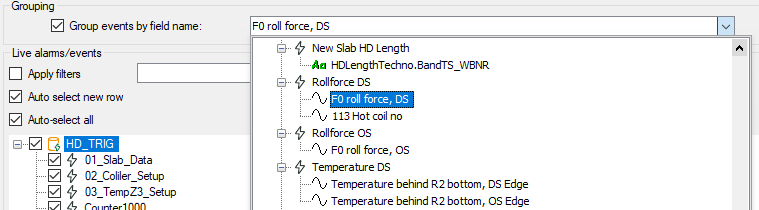

By clicking on the drop-down button, a list opens with all configured events of the connected ibaHD-Server with the corresponding fields.

Choose a field name. The corresponding events will be displayed groupwise under a common name chosen for this group.

If several groups are defined, the groups will be arranged according to the value of the column chosen as sorting criterion.

The lines displayed in the group can be manually expanded or hidden with the buttons <-> or <+>. If the option Auto-expand groups is enabled, the event table is automatically expanded.

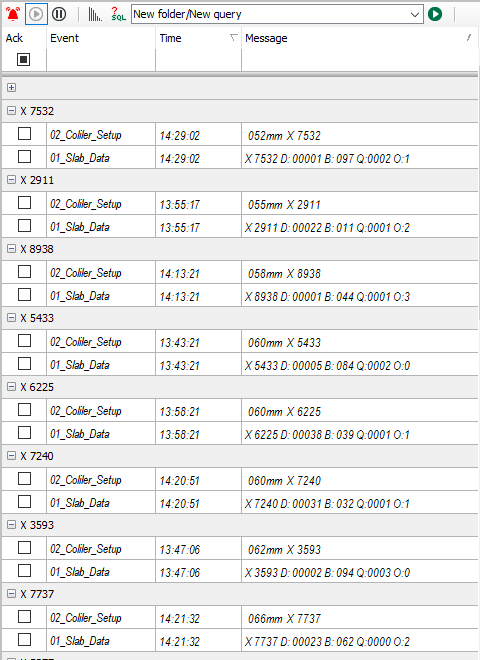

Event table with grouped events:

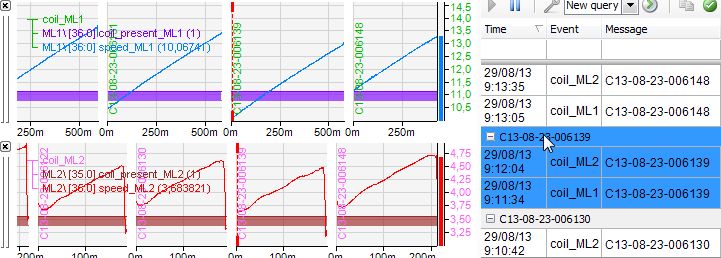

By double-clicking on the group cell the corresponding trend graph will be searched for all events in this group. In the properties dialog, rules for the application of commands can be defined, so that the commands will only be sent to certain HD trend graphs.

Application example:

In a length-based HD store, to which several measuring stations write the data, the signals of a certain product ID shall be displayed.

Live alarms/events

Here you can see a tree structure of all event-based HD stores of the associated ibaHD-Server with the stored events. Select here the events which have to be displayed in live mode in the event table.

Selecting the setting Auto-select all all events of all HD stores of the associated ibaHD-Server are always displayed in the event table.
