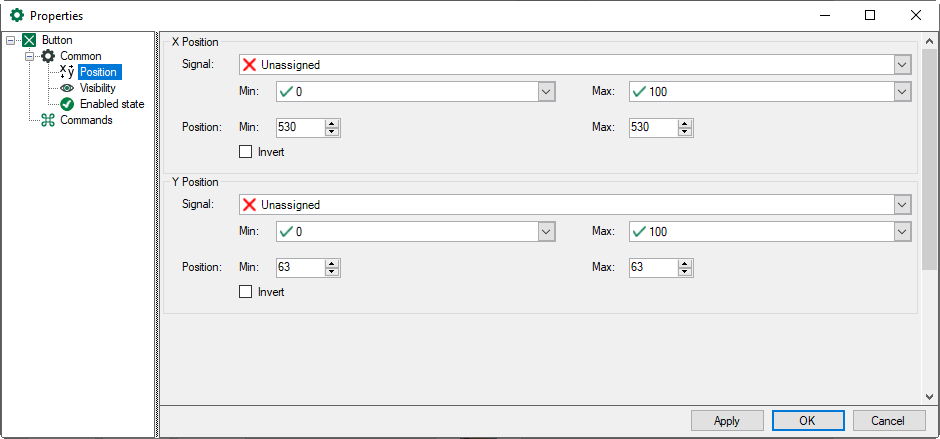

The position can be configured with dynamic values along the X and Y-axes. The values at min. and max. refer to the value range of the signal. This will be scaled with the min./max. position. Reference point is the left upper corner of the object.

In the above example, an object with the dimensions 10*10 is placed as follows: With a signal value -100, the object appears at X=0 pixels, i.e. at the far left. with the signal value 100 appears the upper left edge of the object at X = 500 pixel.

Dynamic ranges can be defined graphically as well. Select Dynamic regions in the context menu (Shortcut keys <Ctrl>+<M>).

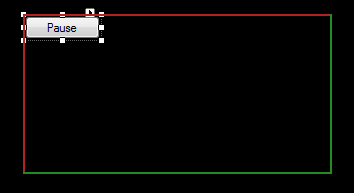

If this function is enabled, a frame in red and green is shown when clicking on an object.

Drag the mouse to draw the green frame and with this define the dynamic range. Do not touch the frame at the control points otherwise the object will be enlarged. You have to touch the green lines outside the control points with the mouse in order to drag them.

The object moves within the range marked like this.

By enabling the option Invert the direction of movement will be reversed.
