The description of the range properties follows here with the example of the circular gauges. The settings for linear gauges are the same.

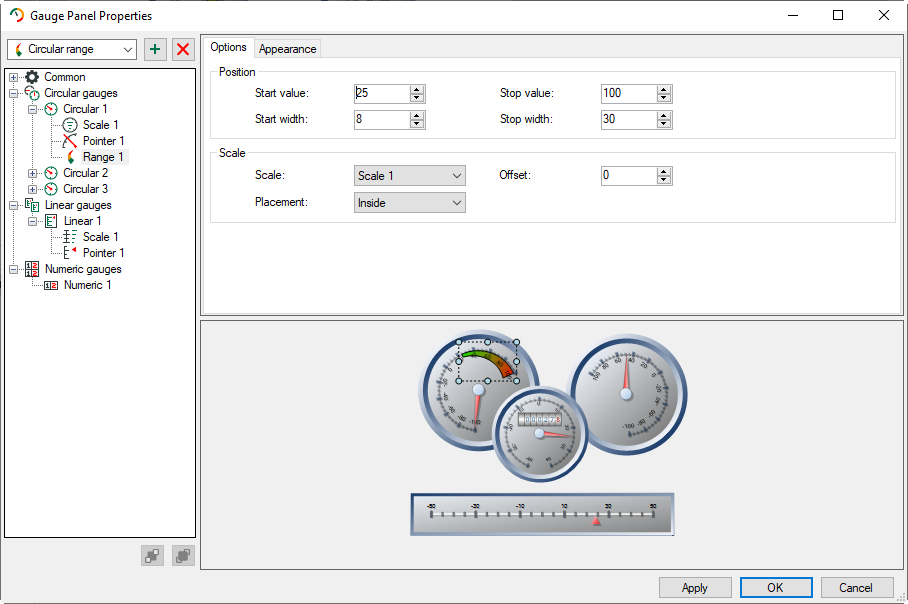

Options

In addition to the scale, a range can be displayed. Start and stop value refer to the values on the scale. You define the position of the range via placement and offset. Without scale, the range is not visible.

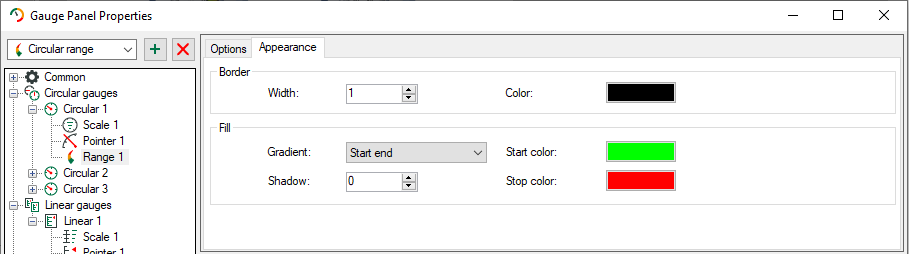

Appearance

In the tab Appearance, you can specify the borders and fillings of the range.
