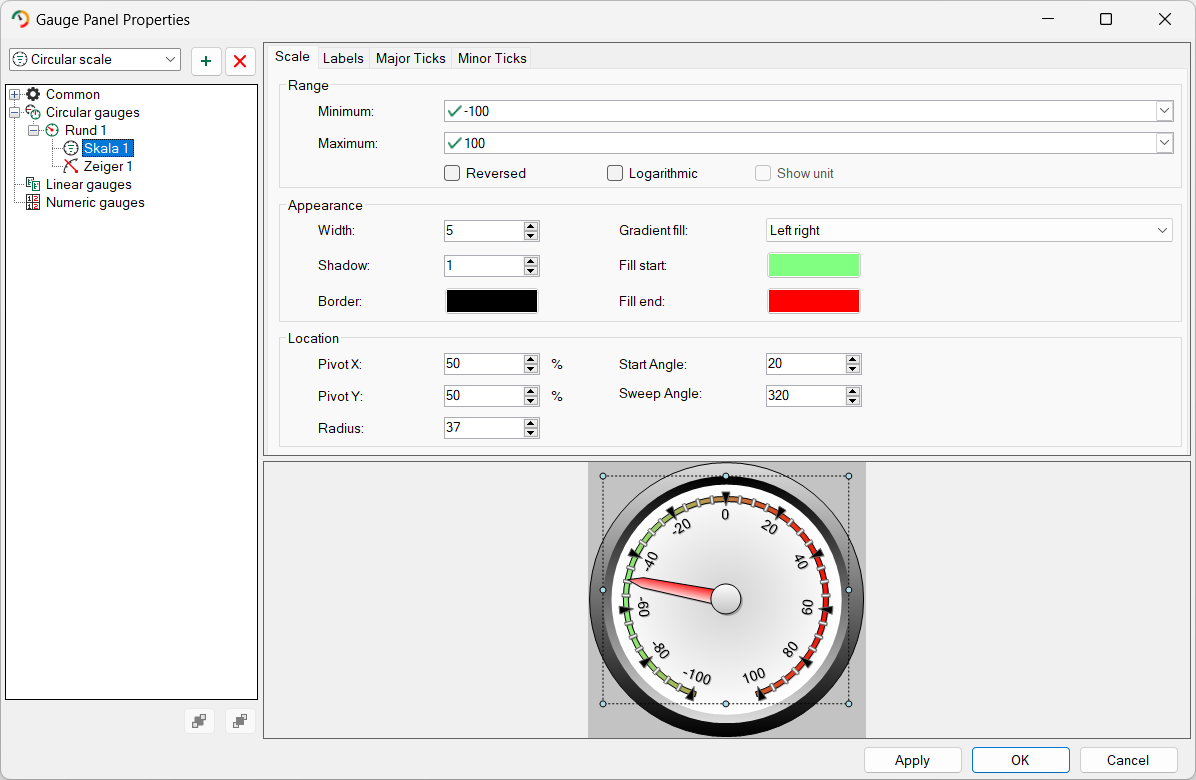

The scale properties are described here in the example of the circular gauges. The settings for linear gauges are the same.

Range

The range displayed on the scale will be given with the minimum and maximum value. You can enter a fixed value or select a signal from the drop-down list. When you select a signal, you can display the unit.

Furthermore, the direction can be changed and a logarithmic scale can be chosen.

Appearance

Here, the width of the scale, the shadow and colors are defined.

Location

The center of rotation is located in the middle of the scale. The scale itself can be shifted within the gauge. With X and Y values of 50%, the scale is positioned in the middle of the gauge. The initial angle will be calculated from the lowest point of the scale; the scale angle will be calculated from the initial angle.
