FFT view

Function

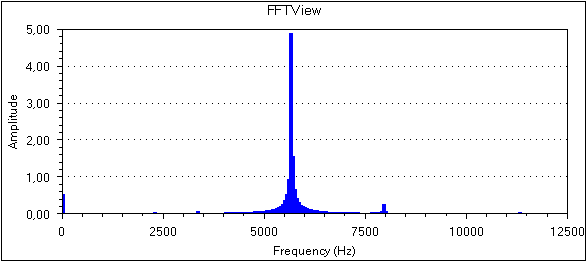

The basic function of the FFT view of the ibaQPanel is the display of the frequency domain of analog signals (=data source).

A detailed description and explanation of the FFT view can be found in the ibaPDA manual.

Configuration

Configure the settings in the properties dialog of the ibaQPanel FFT view. After exiting design mode, the signal can be transferred from the signal tree to the FFT view via drag & drop.
