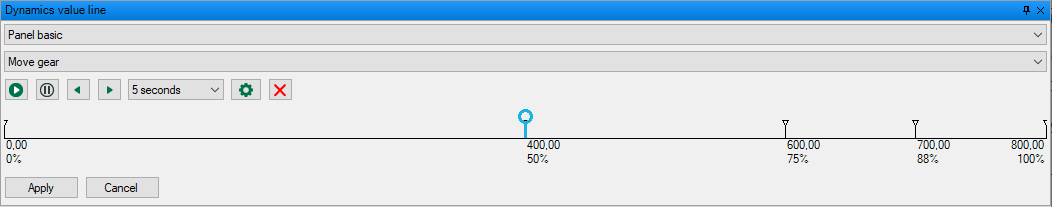

By means of the dynamics value line, a dynamization can be clearly checked and edited. On the value line, the defined states will be displayed along a linear bar. The states will be displayed with their names at the respective position within the signal. To check a dynamization, every value along the value line can be marked with one mouse click.

In the panel, the corresponding situation of the objects (position, color etc.) will be displayed. This does not only apply to the defined states but also to any value in between.

In case a state is marked, the properties of the objects can be changed in the panel. This change will simultaneously be applied for the dynamization.

If properties of objects are changed between two states, a new state will be inserted at this position.

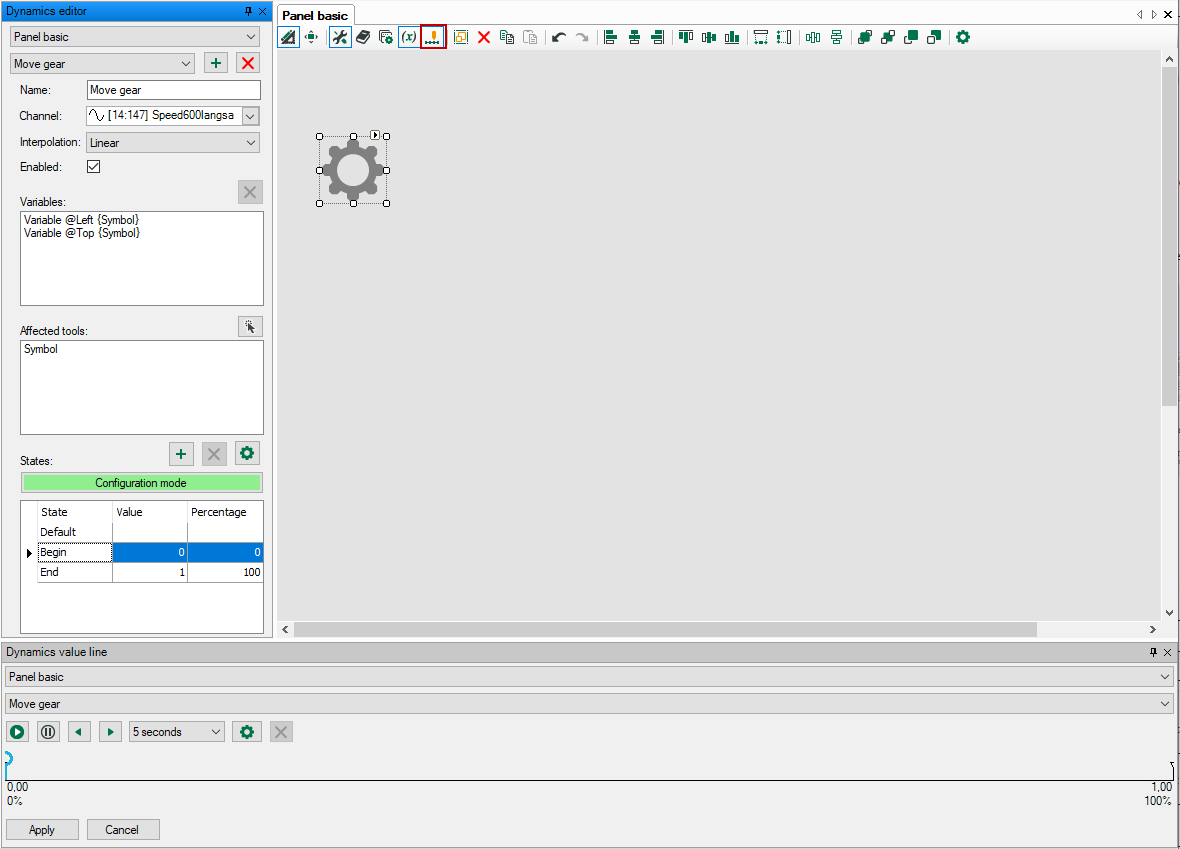

The dynamics value line is displayed by clicking on the button in the toolbar.

In the drop-down menu, you can select dynamizations that have already been created.

The currently marked position on the value line will be displayed by a marker. The marker is blue, when a defined state is marked, in the areas in between, the marker is green. The value of the marked position will be displayed as a tooltip.
