In addition to the above described properties dialog, there is a properties window in which properties of one or more objects can be displayed and changed.

If several objects are marked, their common properties can be changed simultaneously.

There are different methods to open the properties window:

• Click on the button in the toolbar. The properties window will then be displayed as a dockable window.

• Mark several objects in the panel and and double click on one of the elements. The properties window will then be displayed as a “floating” window.

• In the context menu you can select and open the respective properties dialog of the single elements.

The properties that apply to all marked objects will be displayed in plain text. If the properties differ, no value will be displayed but the amount of the different properties.

By clicking the <Edit> button the property can be changed. The change then applies for all marked objects.

For example, a background color can be assigned to all objects. The property “Back color” can be changed here for different objects collectively.

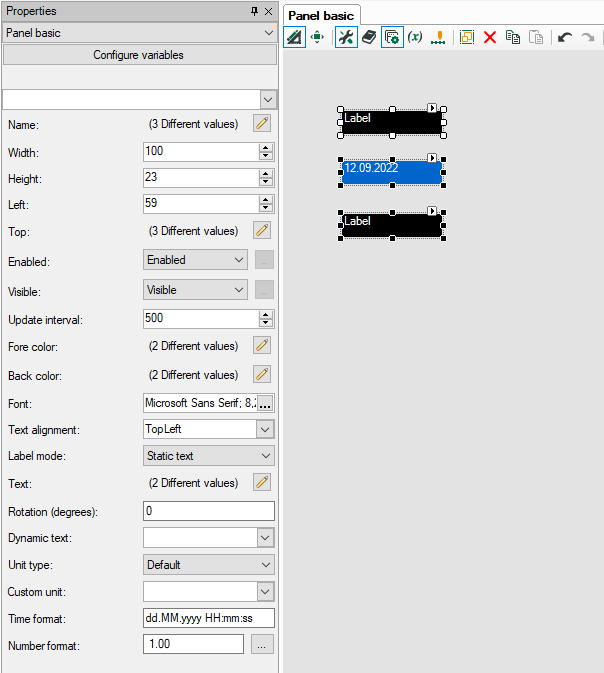

If different objects are marked, all properties that show the marked objects will be displayed in the properties window. However, the assignment which property belongs to which object, will not be displayed.

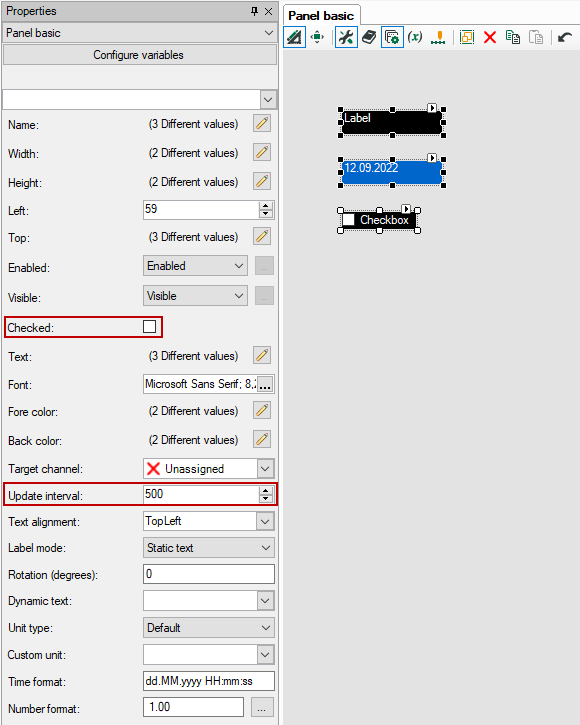

In the following example, the properties “Checked” and “Target channel” belong to the check box object. They do not apply to the text field objects.
