Function
With the checkbox, you can write two binary states to a writeable signal. If the checkbox is checked, a 1 will be written to the signal. If no state is selected, a 0 will be written to the signal. If a signal is adapted via several checkboxes, the status change of one checkbox will be displayed in the other checkboxes accordingly.
The target signal requires an analog or digital signal from a virtual module of the type ibaQPanel input. The ibaQPanel input module can be found in the I/O Manager in the Analytics tab under the virtual modules.
Configuration
Appearance
Enter here the text to be shown in the checkbox, and select the font type. For “Target signal”, select the ibaQPanel target signal that you want to write to.
In addition, you can define the background and the foreground color (=text color).

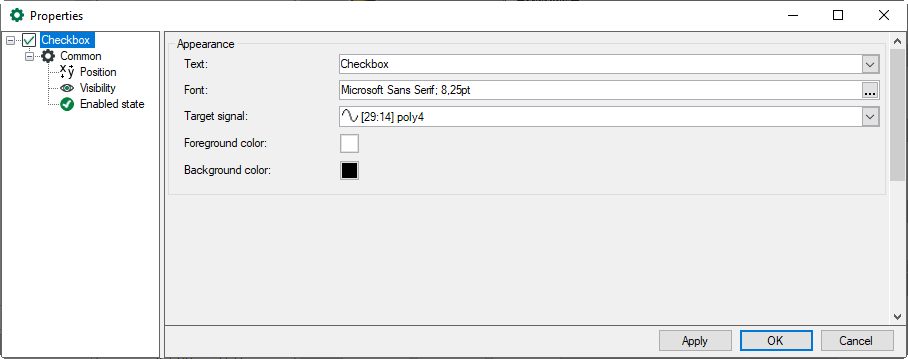

Example:
