In the dialog Visuals, it was possible to define if the names of all configured items were displayed or only the names of the curves and the X-Y pairs. If the signal of a curve is invalid, this will be indicated with an exclamation mark.

The legend provides a drag and drop function as in the normal trend graph. This way, an item can be laid upon different value axes. While dragging the item, an arrow appears in the value axis tree pointing to the tree that will contain the item when it is dropped. If an item is not dropped inside a legend row, the item will be laid upon a new axis. An item can be removed by right clicking inside a legend row.

With the Text item, an additional text can be displayed.

Data

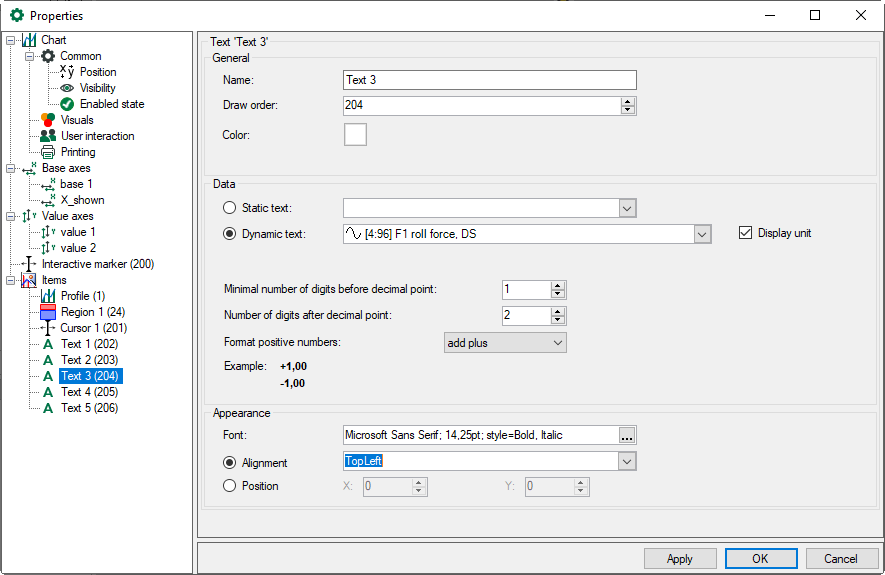

This text can be a static text, which is entered directly in the dialog field, or the value of a signal to be displayed. For the display of the signal value, the integer digit positions, decimals and the sign display can be defined.

Appearance

Color, font, font size as well as the position are assigned to the text.

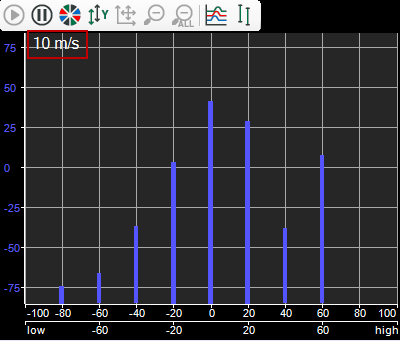

Example:

In the example given above, the selected signal value will be displayed in the upper left corner.
