Bar chart

Function

The bar chart in ibaQPanel is flexible to use. The flatness profile of a strip rolled in a rolling mill can be visualized with this display for example.

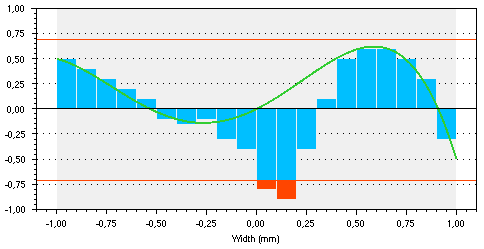

In this example, every bar represents the rotating pressure sensor of a flatness measuring roll when a strip is rolled over. Both of the red horizontal lines represent limit values. If a bar is beyond the limit values, the extending part of the bar will be displayed in the color of the limit. The green curve represents the calculated strip profile. It is a polynomial of the fourth order or single values. The range marked in gray complies with the measured bandwidth.
